Penjepit dan Pengapit Kren

Cangkuk Pengangkat & Cangkuk Rigging: Tahan Lama dan Berbilang

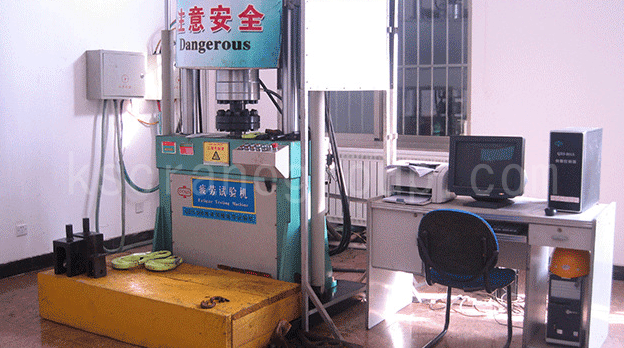

Our lifting hooks are forged from high-strength, high-toughness special alloy steel, undergo heat treatment, and are surface-coated with sprayed plastic. Each piece is subjected to a tensile test at 2.5 times the working load, with the breaking tensile strength being four times the working load. All products undergo magnetic particle inspection.

3Swivel Lifting Hooks — Swivel Lifting Hooks

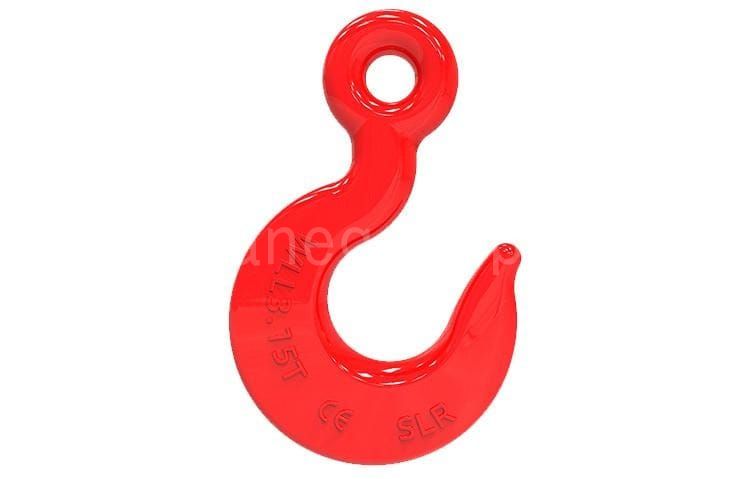

Eye Sling Hooks

These are single-point hooks that are typically used in light-duty lifting. They feature an eye-shaped opening at one end, which is used to attach the hoist lifting hooks to the lifting machinery. A chain or fittings are welded on an eye hook for a permanent connection to the sling. With an eye hook, you get far more flexibility in terms of movement and ergonomics to position the crane hoist hook and attach it to the load.

8Forged crane eye hooks — Forged crane eye hooks

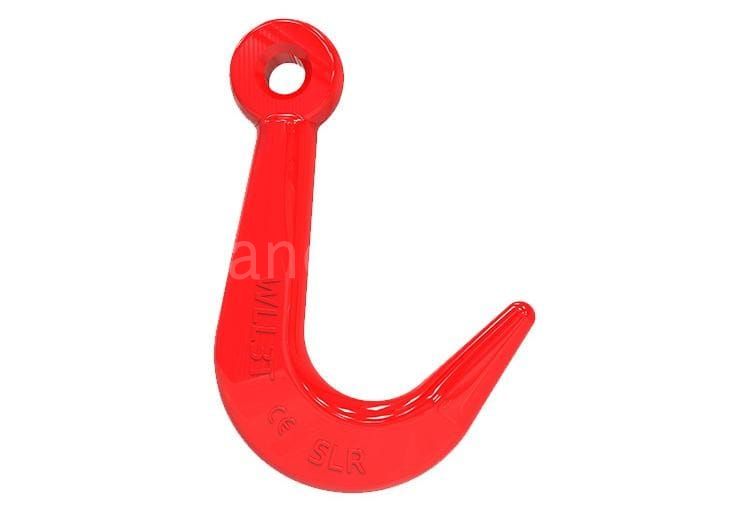

9Forged eye hoist hooks — Forged eye hoist hooks

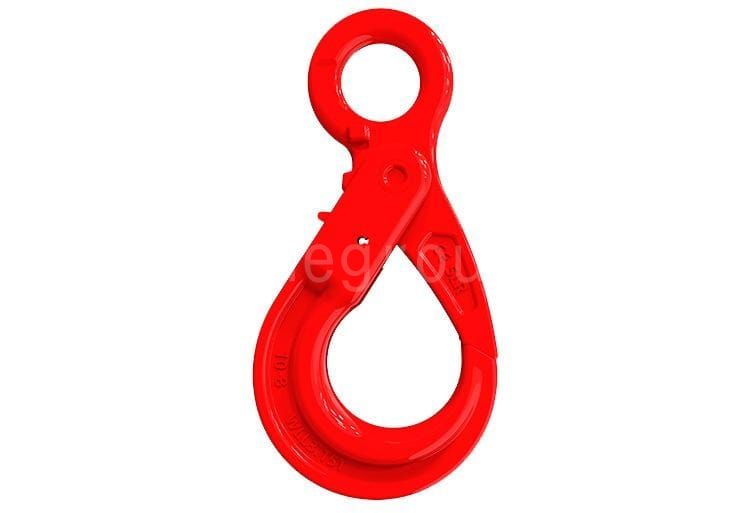

10European grade 80 eye hooks — European grade 80 eye hooks

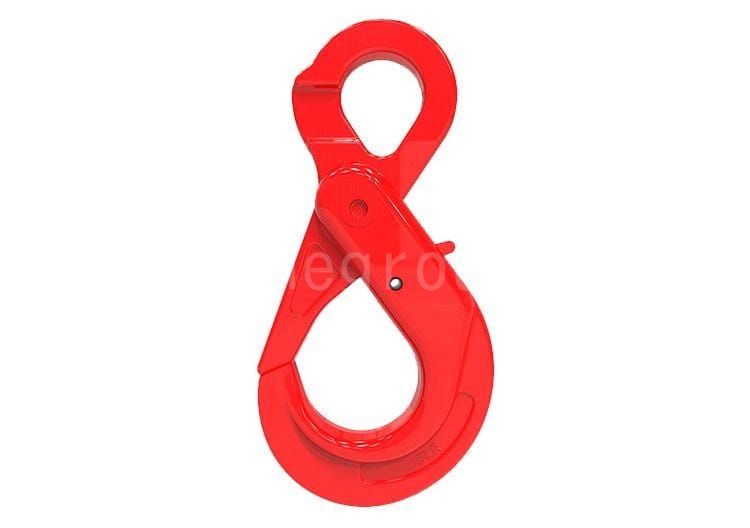

11Italian eye self locking hooks — Italian eye self-locking hooks

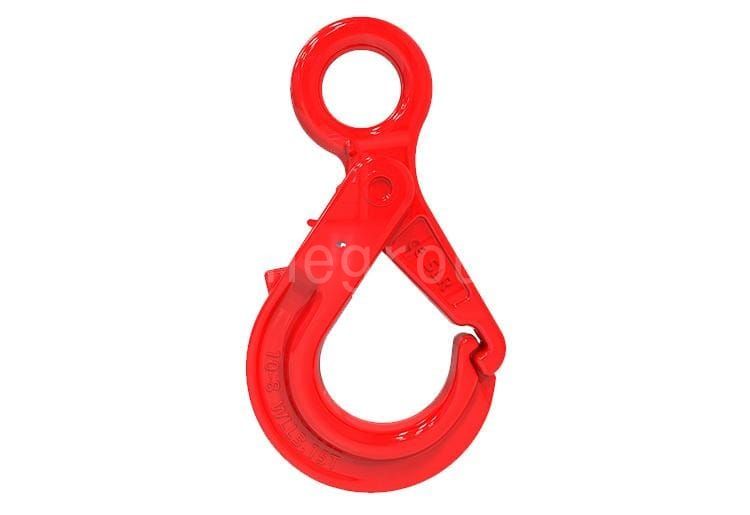

12Grade 80 eye self locking hooks — Grade 80 eye self-locking hooks

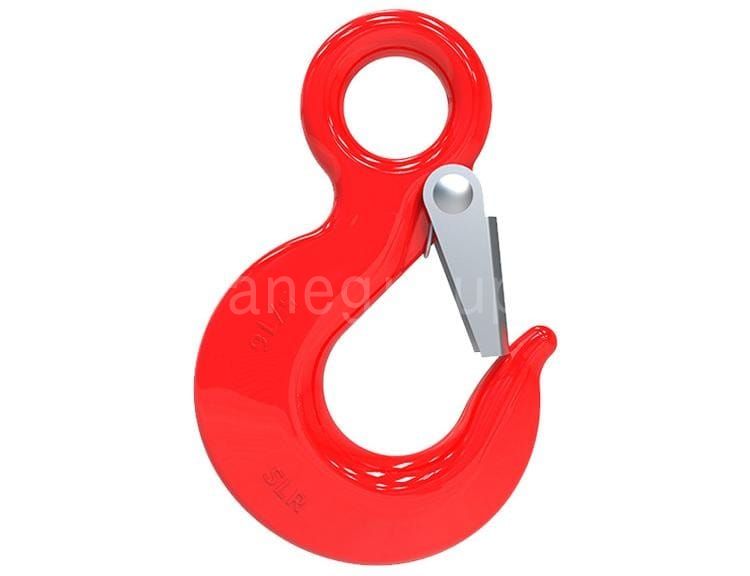

13Forged eye hooks with rigging hook safety latch — Forged eye hooks with rigging hook safety latch

14Grade 80 forged eye sling hook with safety latch — Grade 80 forged eye sling hook with safety latch

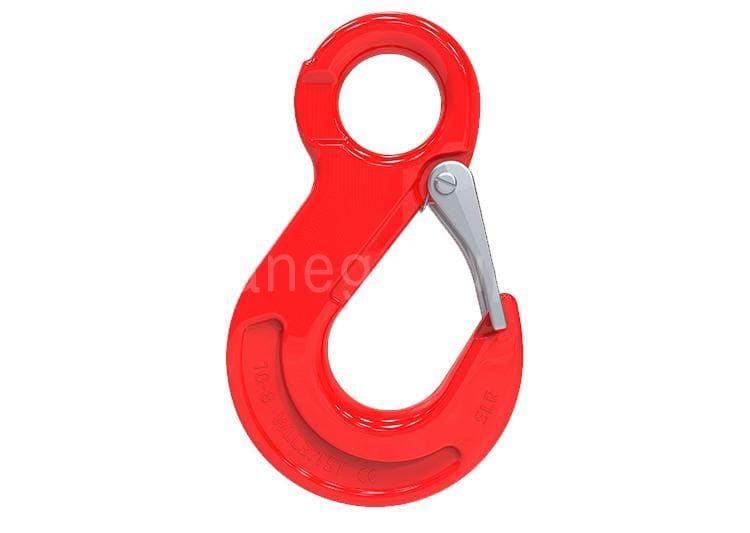

15Grade 80 forged eye sling hook with latch — Grade 80 forged eye sling hook with latch

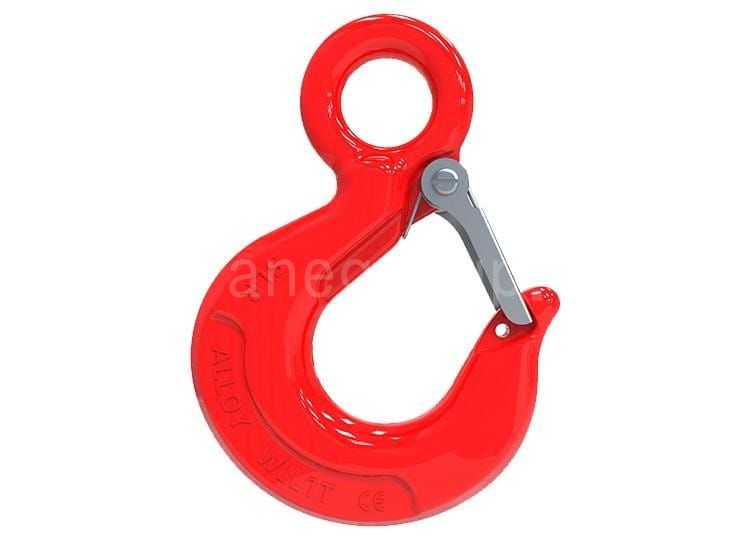

16Forged eye hooks with safety latch — Forged eye hooks with safety latch

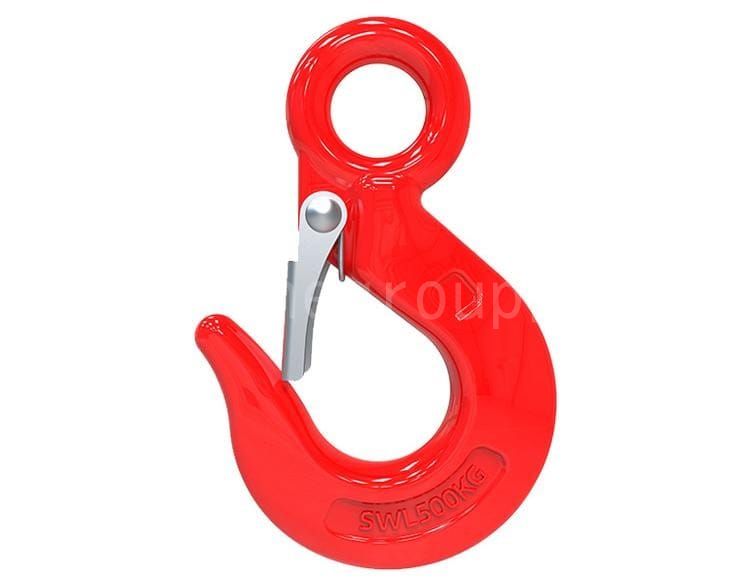

17German forged eye hooks with safety latch — German forged eye hooks with safety latch

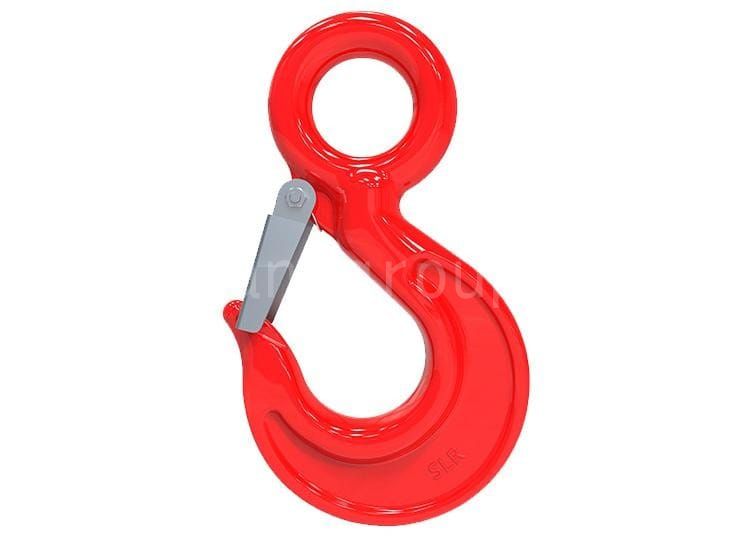

18Italian forged eye hooks with safety latch — Italian forged eye hooks with safety latch

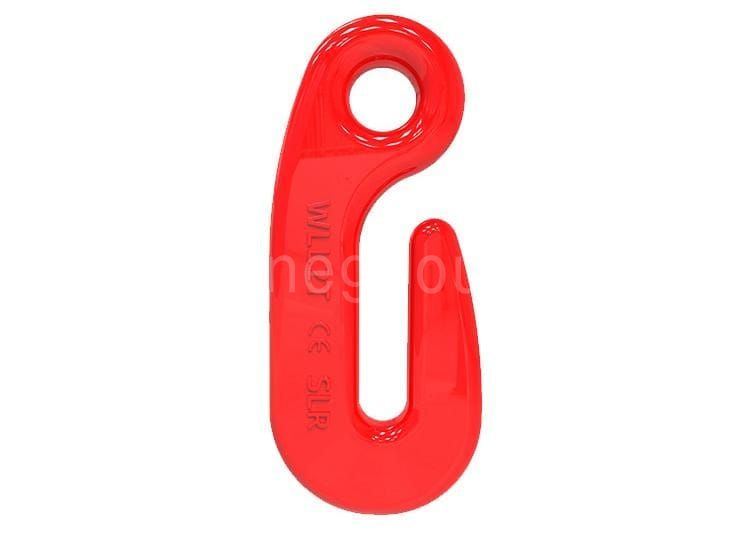

19Forged eye grab hooks — Forged eye grab hooks

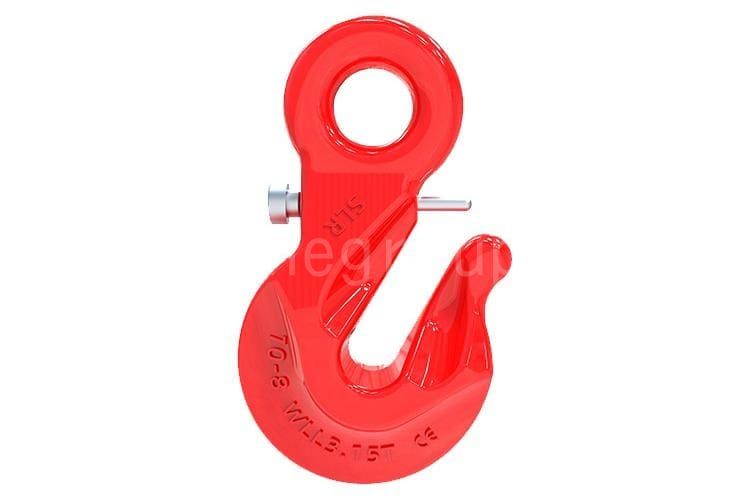

20Eye grab hooks with safety pin — Eye grab hooks with safety pin

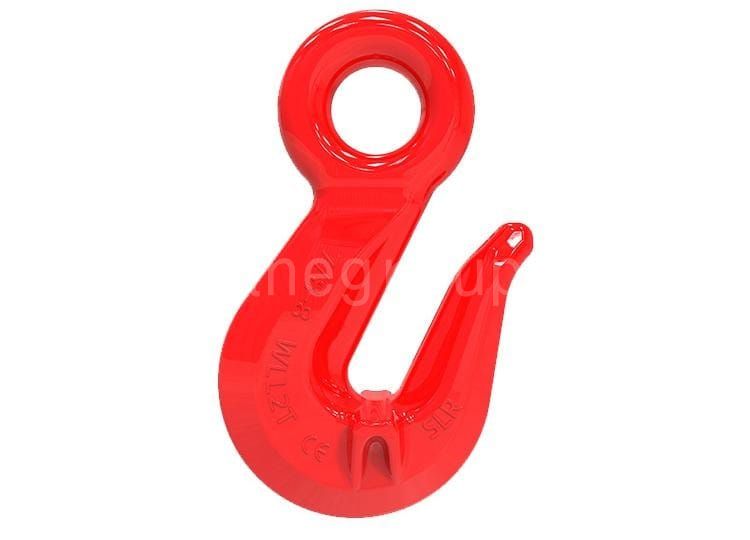

21Grade 80 eye grab hooks 1 — Grade 80 eye grab hooks

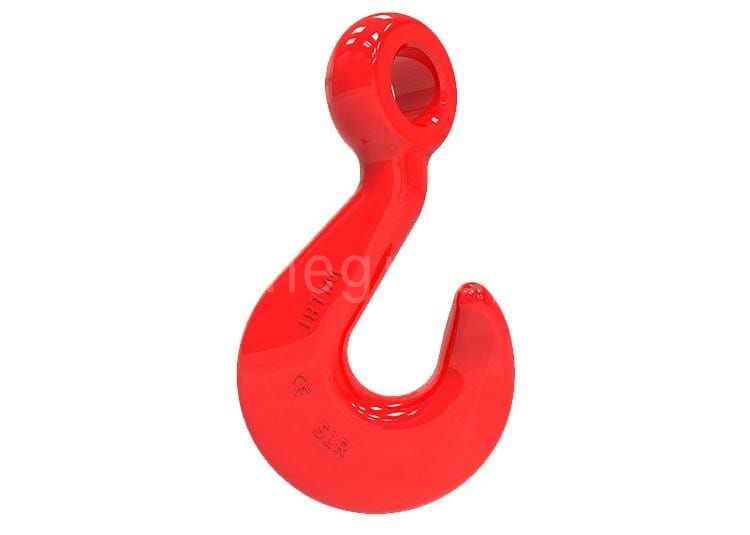

22Twist eye logging chain choke hook — Twist eye logging chain choke hook

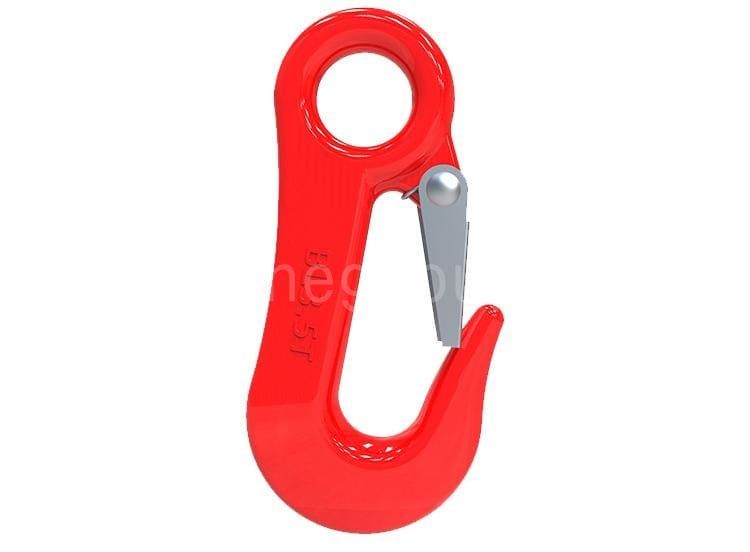

23Forged eye hooks with safety latch — Forged eye hooks with safety latch

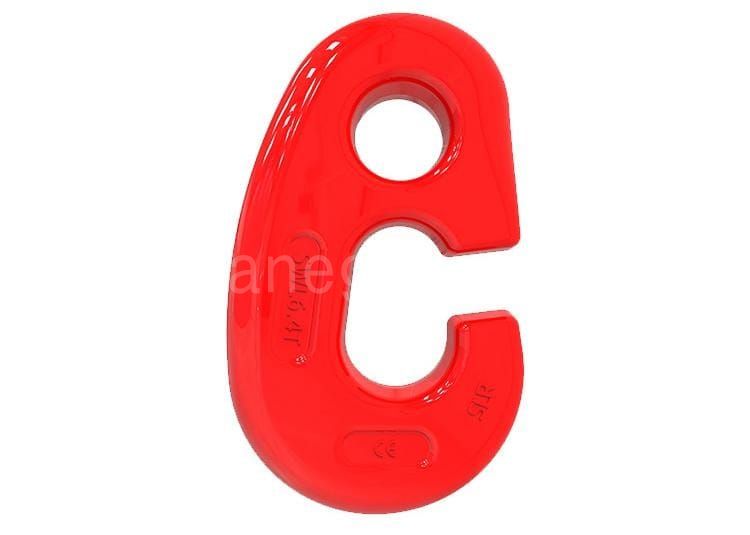

24Eye forged G hook for fishing — Eye forged G hook for fishing

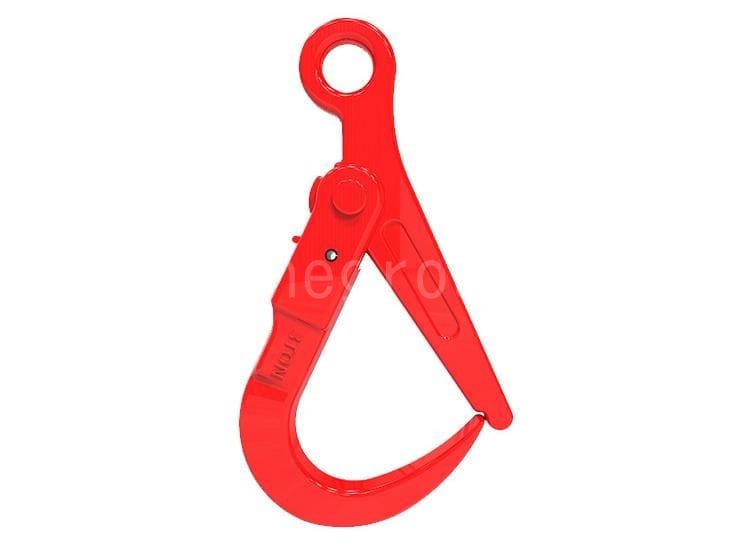

26Eye lifting sling hooks — Eye lifting sling hooks

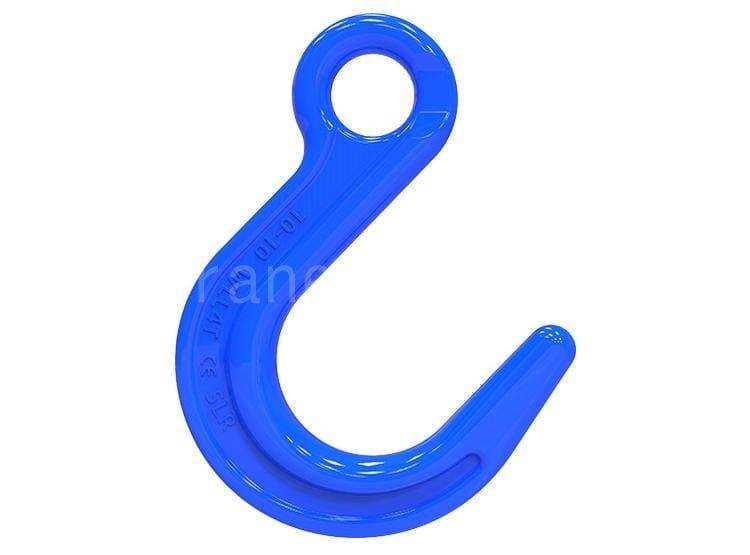

27Grade 100 forged eye hooks — Grade 100 forged eye hooks

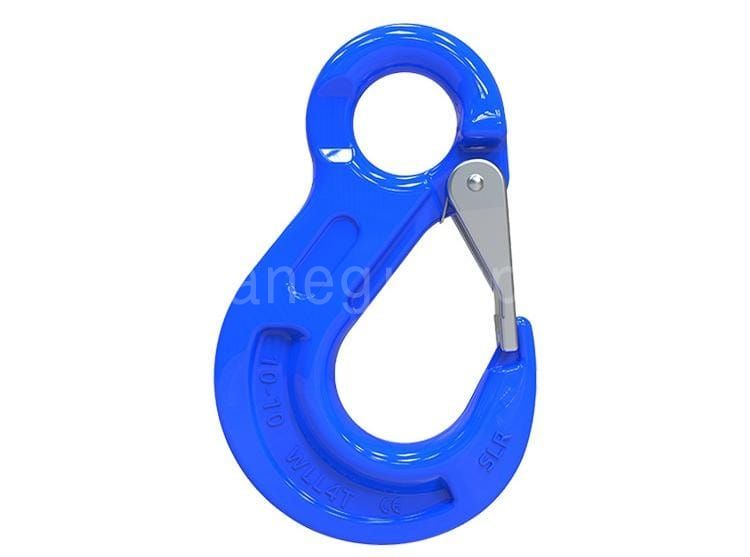

28European grade 100 eye hooks with safety latch — European grade 100 eye hooks with safety latch

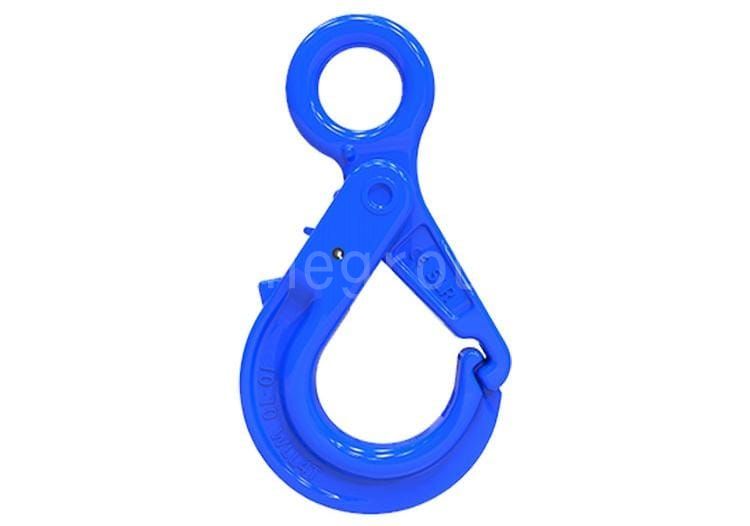

29Grade 100 eye self locking hooks — Grade 100 eye self-locking hooks

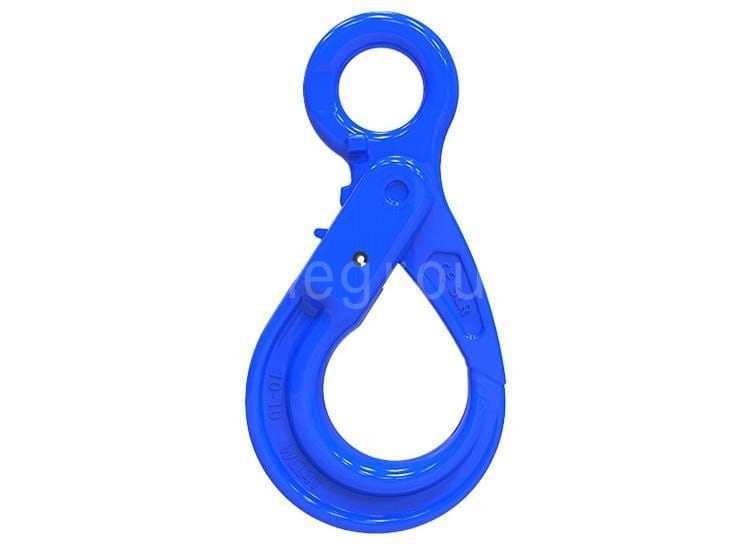

30Grade 100 eye self locking hooks — Grade 100 eye self-locking hooks

31Grade 100 eye grab hooks — Grade 100 eye grab hooks

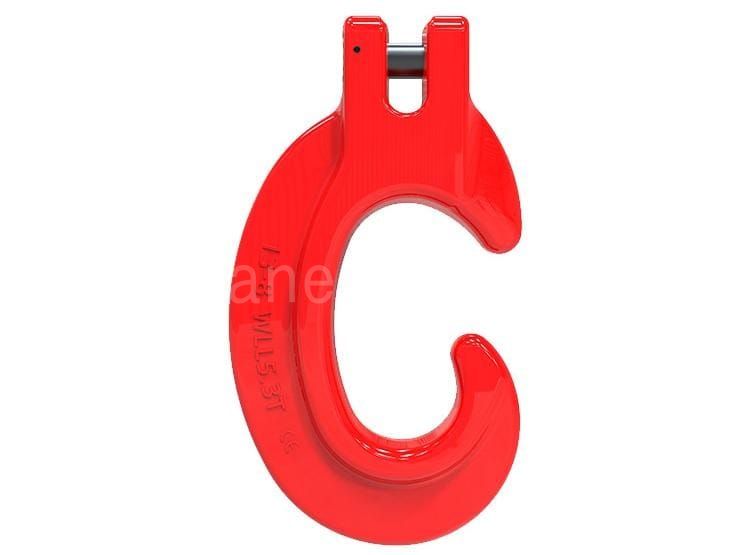

Clevis Hooks

Clevis Hooks are similar to single hooks but feature a clevis pin instead of a latch. This type of rigging chain hook is used mainly in industrial and manufacturing applications and is designed to handle high-capacity loads.

The clevis is a U-shaped piece that has holes at the end of prongs to accept the clevis pin. A clevis hook is a hook, with or without a snap lock, with a clevis and bolt or pin at the base. The clevis is used to fasten the hook to a bracket or chain.

Also, a clevis hook can pivot side to side for positioning when connecting to a load, but doesn’t have the same flexibility or freedom of movement that an eye hook does.

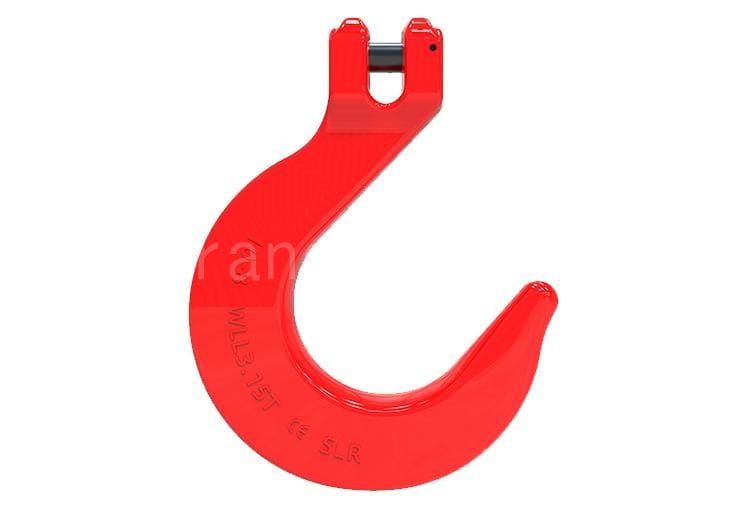

33Grade 80 clevis hooks — Grade 80 clevis hooks

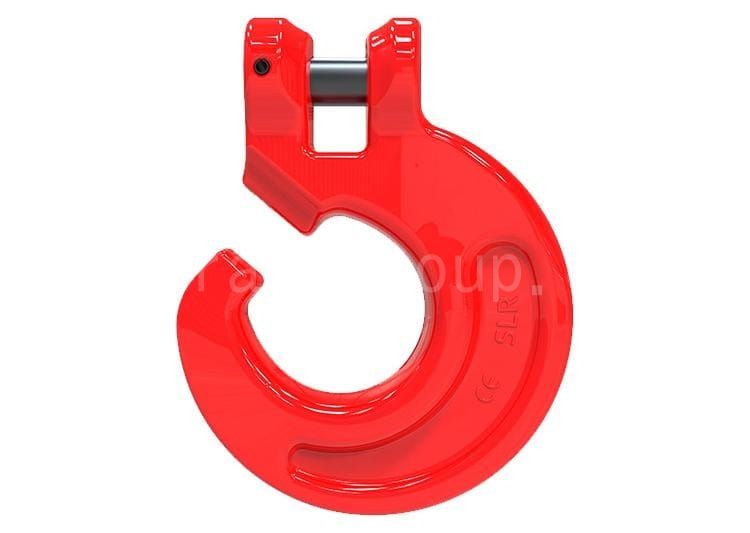

35Forged clevis hooks — Forged clevis hooks

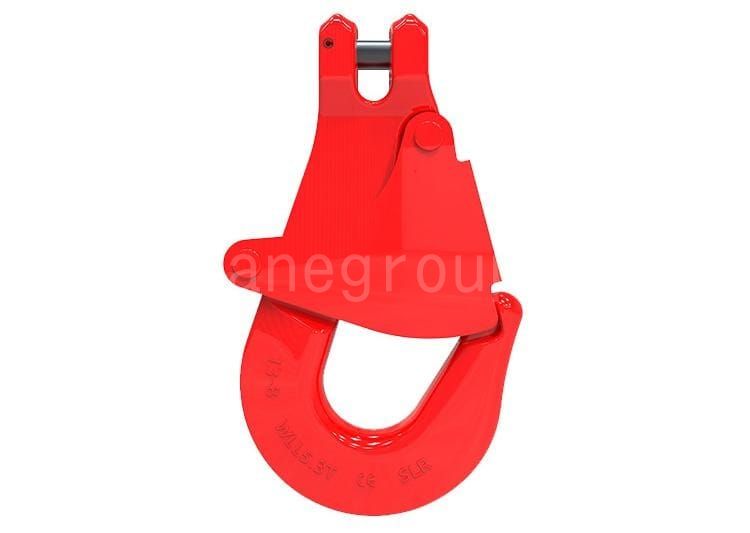

36Forged container clevis hooks — Forged container clevis hooks

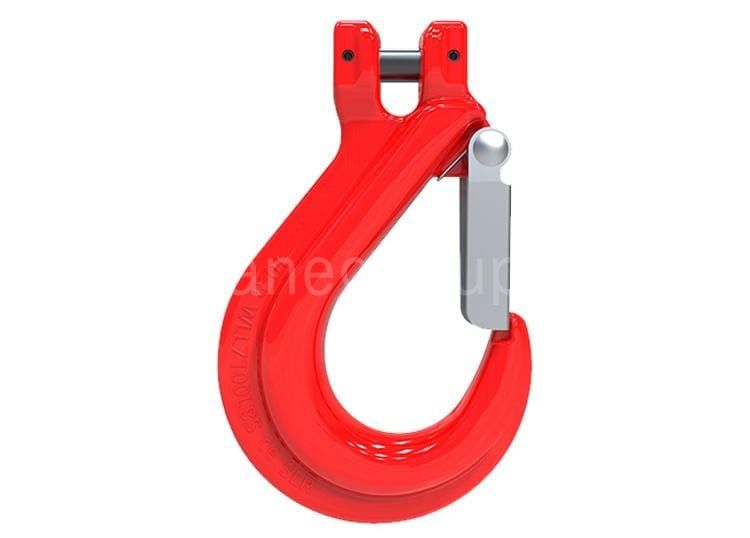

37Grade 80 clevis hooks with safety latch — Grade 80 clevis hooks with safety latch

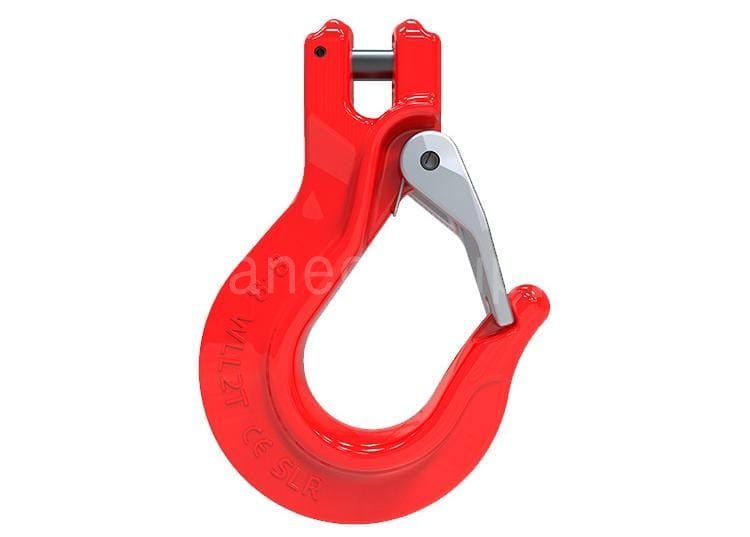

38Grade 80 clevis sling hook with latch — Grade 80 clevis sling hook with latch

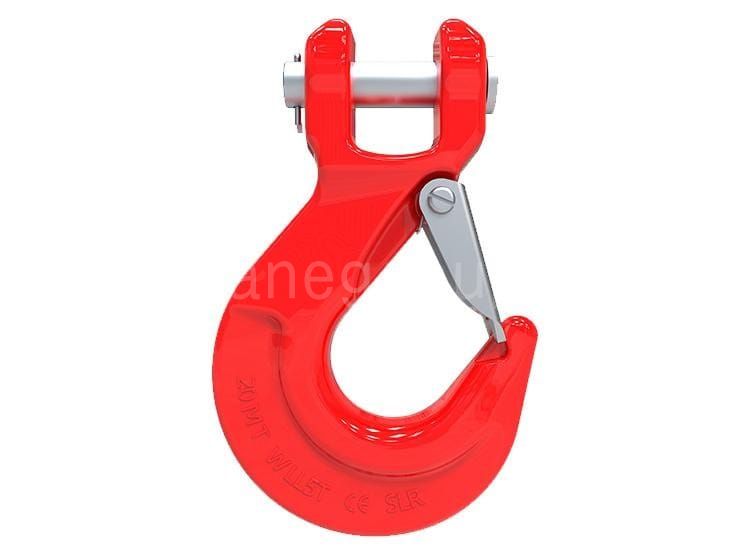

39Forged grade 80 clevis hooks with safety latch — Forged grade 80 clevis hooks with safety latch

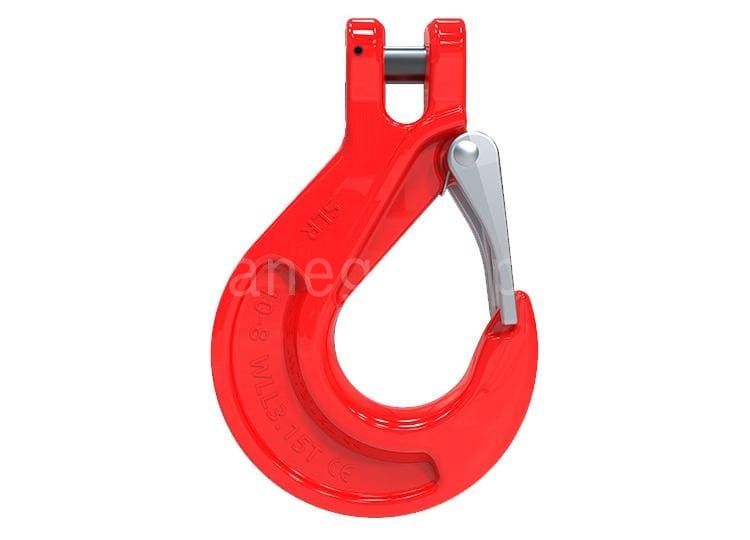

40Italian clevis hooks with safety latch — Italian clevis hooks with safety latch

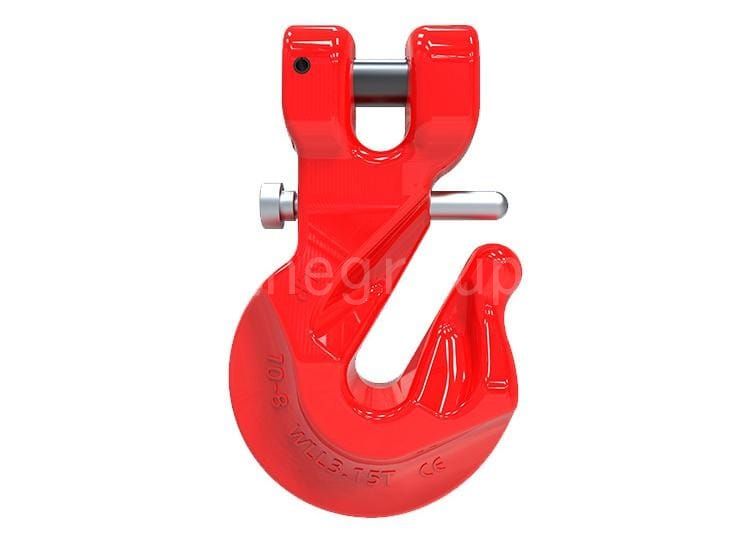

41Grade 80 clevis grab hooks with safety pin — Grade 80 clevis grab hooks with safety pin

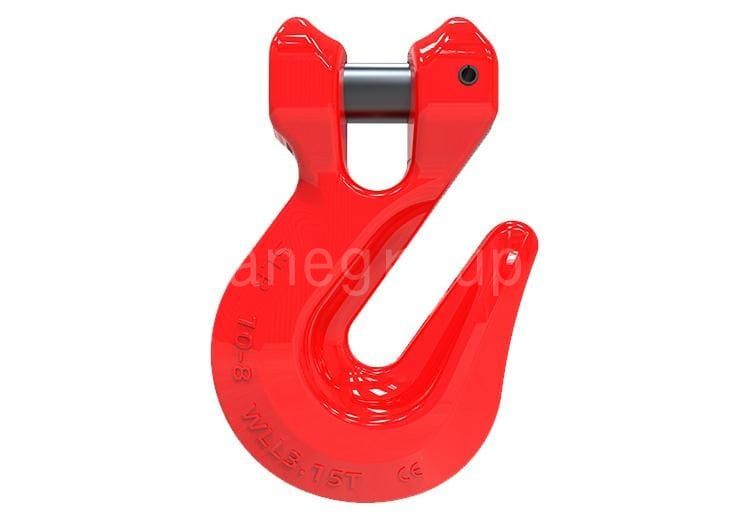

42Forged clevis grab hooks — Forged clevis grab hooks

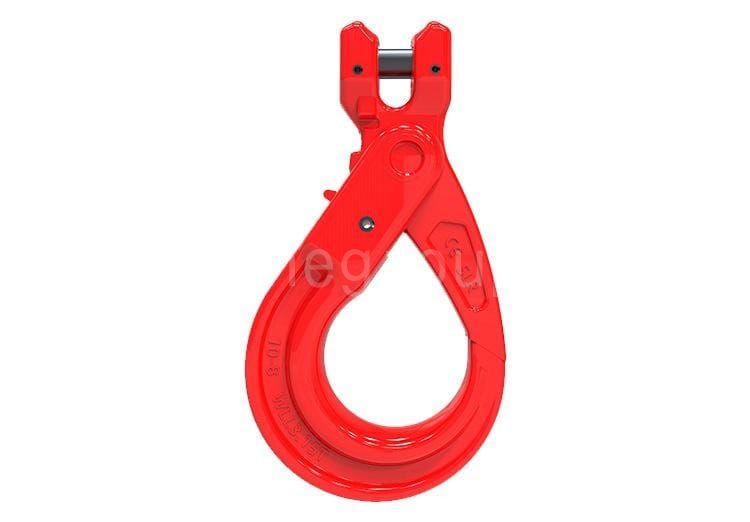

43European grade 80 clevis self locking hooks — European grade 80 clevis self-locking hooks

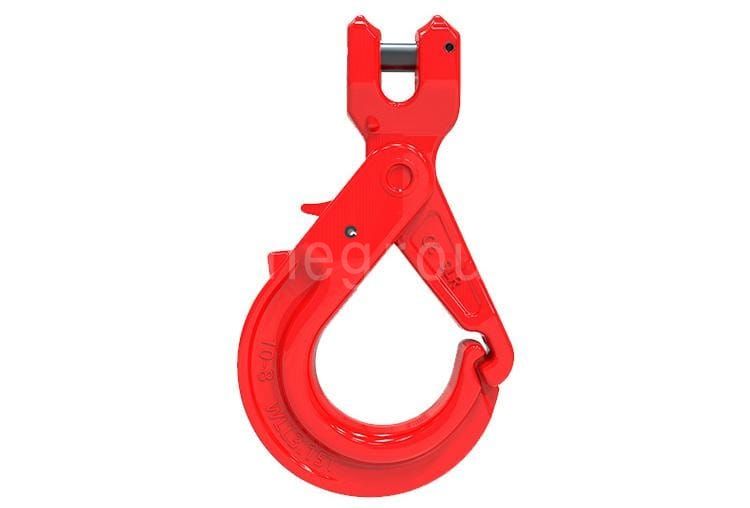

44Grade 80 clevis self locking hooks — Grade 80 clevis self-locking hooks

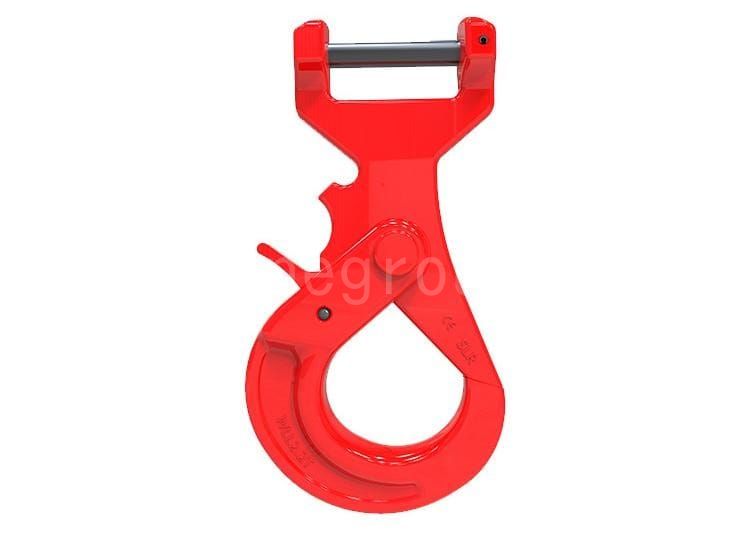

45European grade 80 clevis self locking crane belt hooks — European grade 80 clevis self-locking crane belt hooks

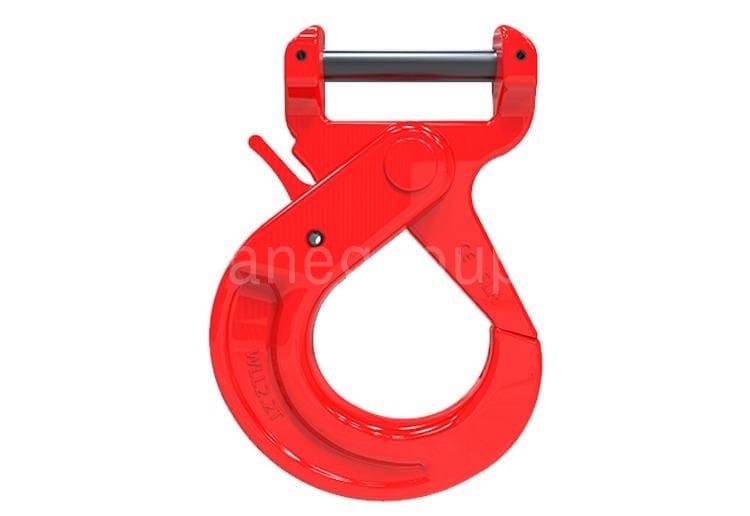

46European grade 80 clevis self locking hooks — European grade 80 clevis self-locking hooks

47Forged grade 80 clevis hooks with safety latch 1 — Forged grade 80 clevis hooks with safety latch

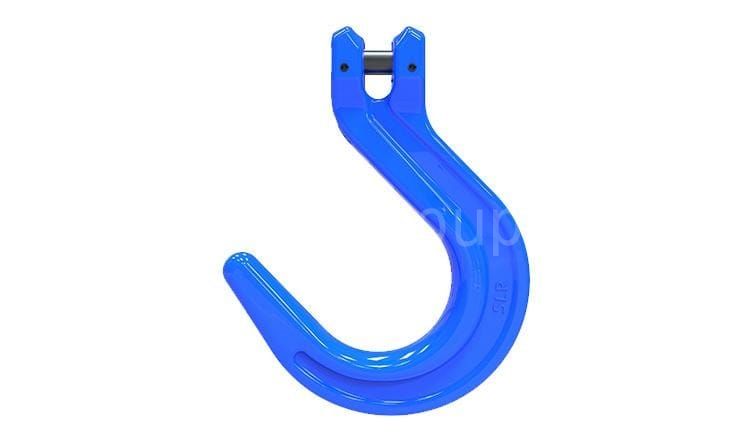

48Grade 100 clevis rigging lifting hooks — Grade 100 clevis rigging lifting hooks

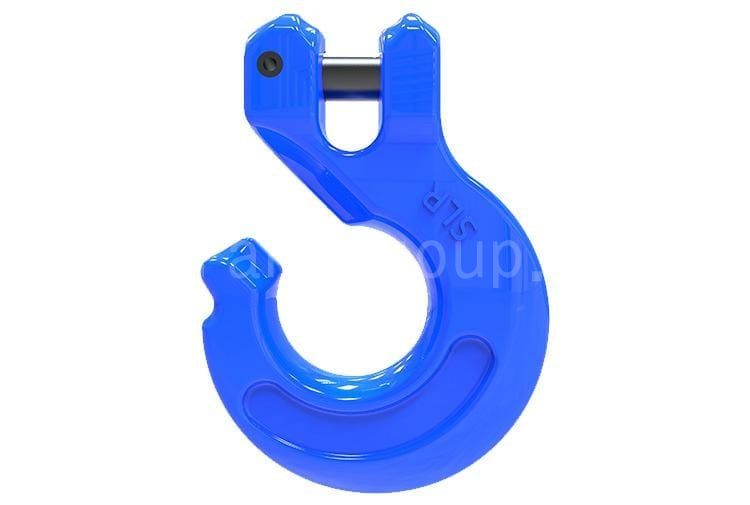

49Grade 100 clevis logging choker hook for chain — Grade 100 clevis logging choker hook for chain

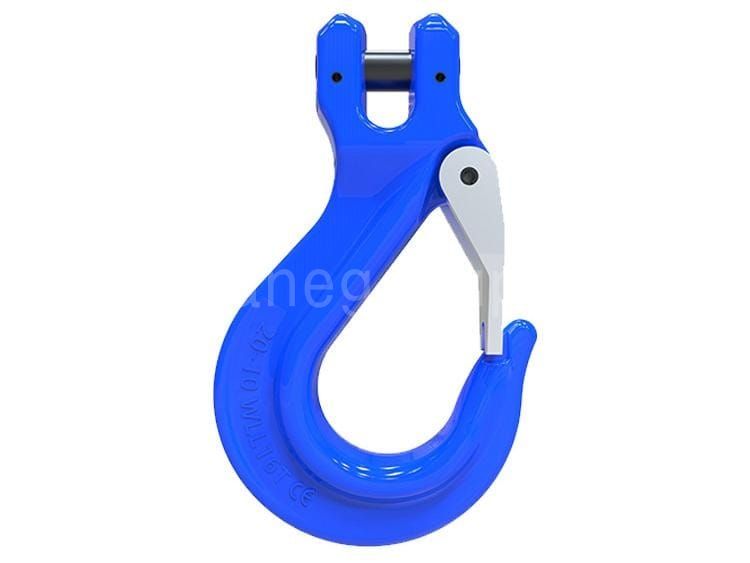

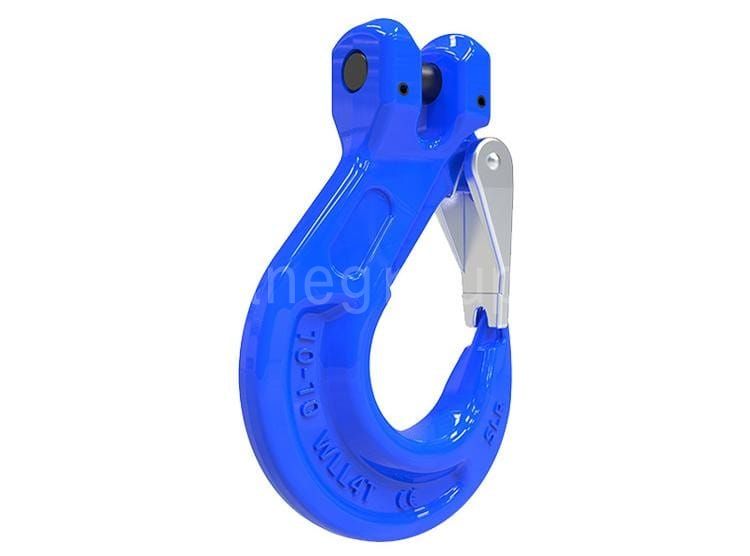

50Grade 100 clevis hooks with safety latch — Grade 100 clevis hooks with safety latch

51Grade 100 clevis hooks with safety latch — Grade 100 clevis hooks with safety latch

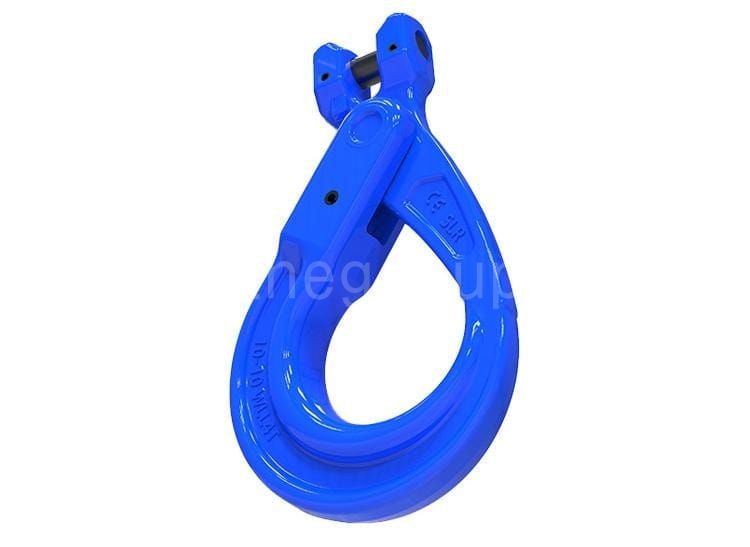

52Grade 100 clevis self locking hooks — Grade 100 clevis self-locking hooks

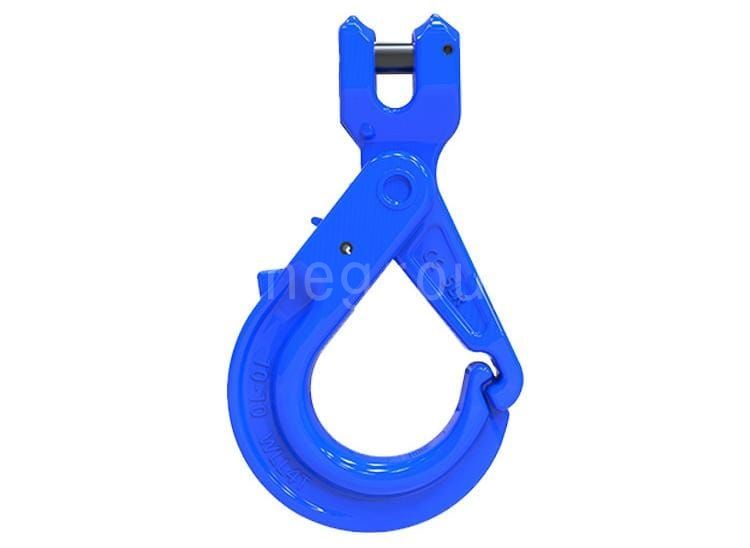

53Grade 100 clevis self locking hooks — Grade 100 clevis self-locking hooks

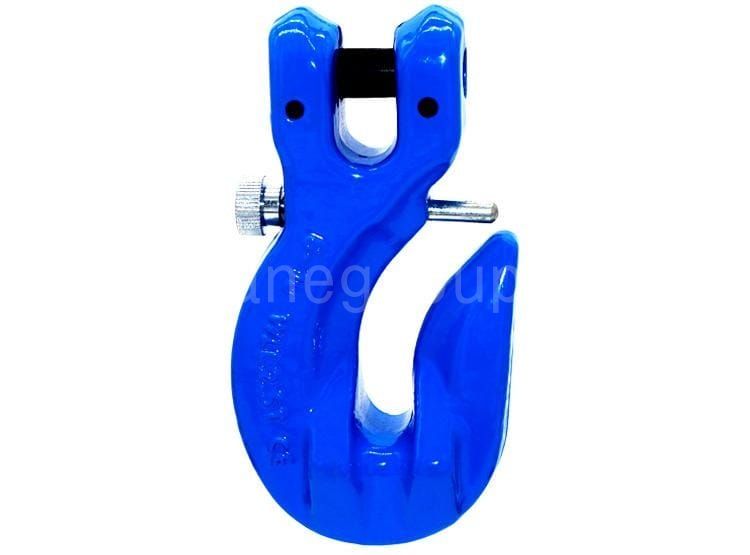

54Grade 100 clevis grab hooks with safety pin — Grade 100 clevis grab hooks with safety pin

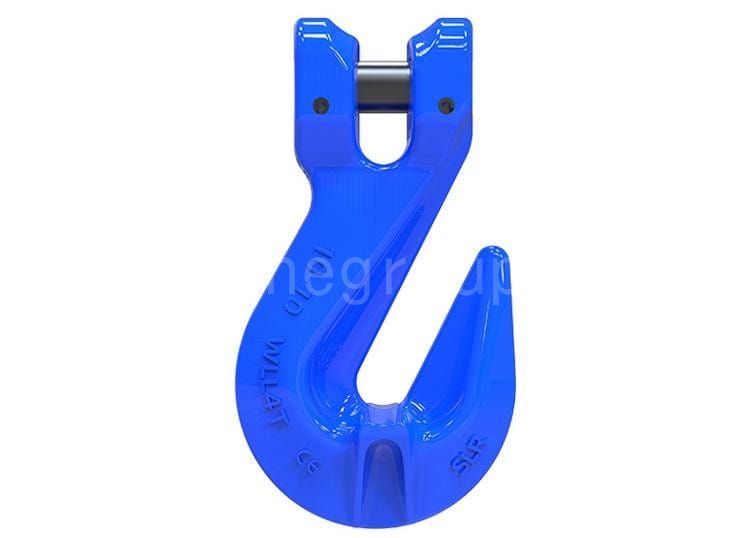

55Grade 100 clevis grab hooks — Grade 100 clevis grab hooks

Swivel Lifting Hooks

Swivel crane hooks are designed to rotate 360 degrees, allowing for greater flexibility and maneuverability during lifting operations. These hooks for rigging are often used in tandem with other crane rigging hooks to provide additional stability and prevent accidental slipping.

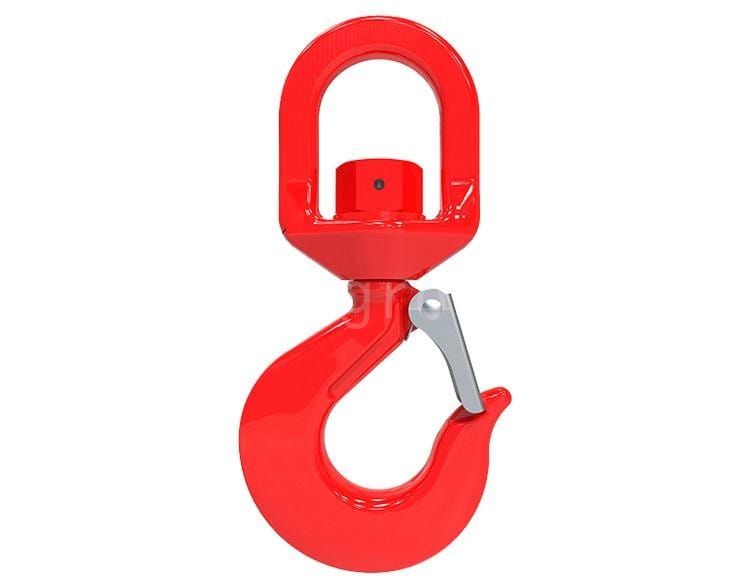

56Grade 80 forged swivel hoist hooks with safety latch — Grade 80 forged swivel hoist hooks with safety latch

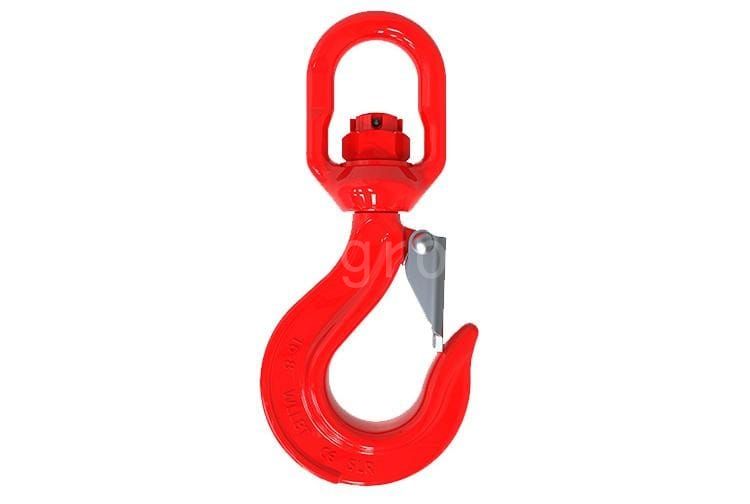

57Grade 80 swivel rigging hooks with safety latch — Grade 80 swivel rigging hooks with safety latch

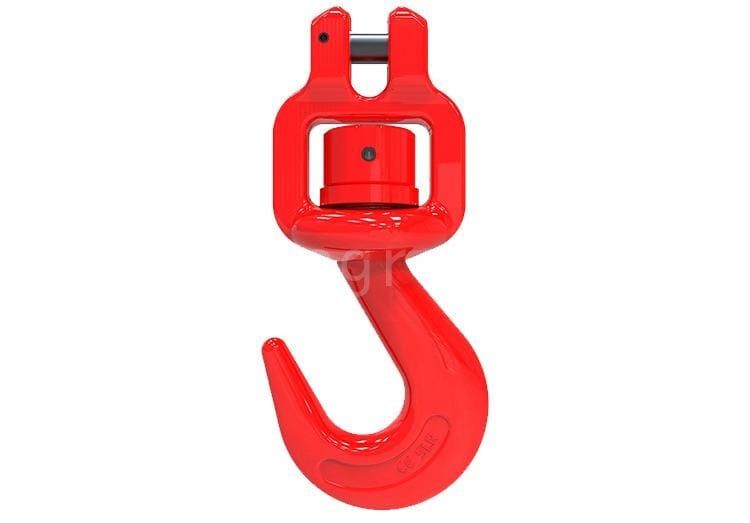

58Grade 80 clevis rigging swivel hooks — Grade 80 clevis rigging swivel hooks

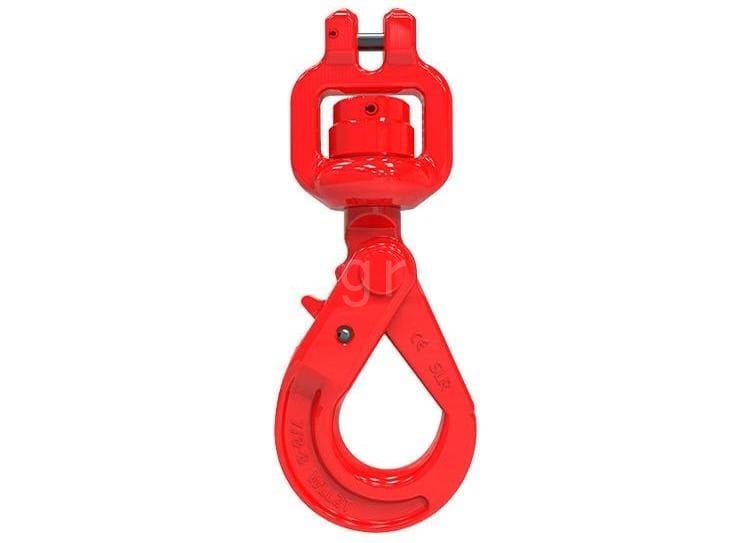

59Grade 80 clevis swivel self locking hooks — Grade 80 clevis swivel self-locking hooks

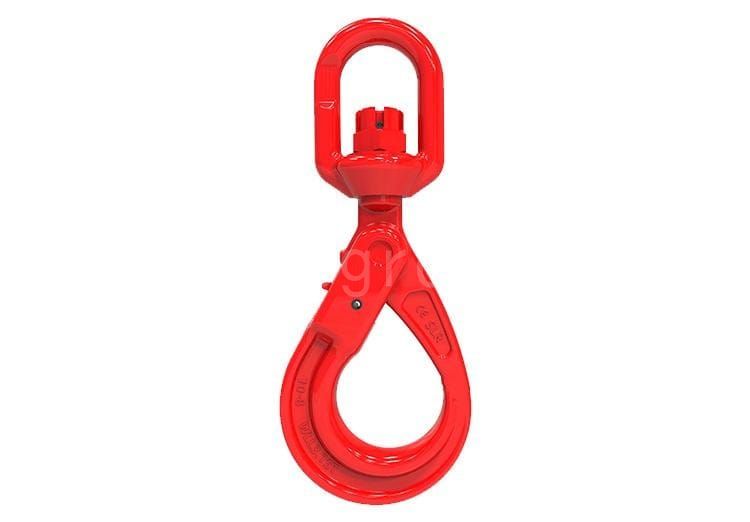

60European grade 80 swivel self locking hooks — European grade 80 swivel self-locking hooks

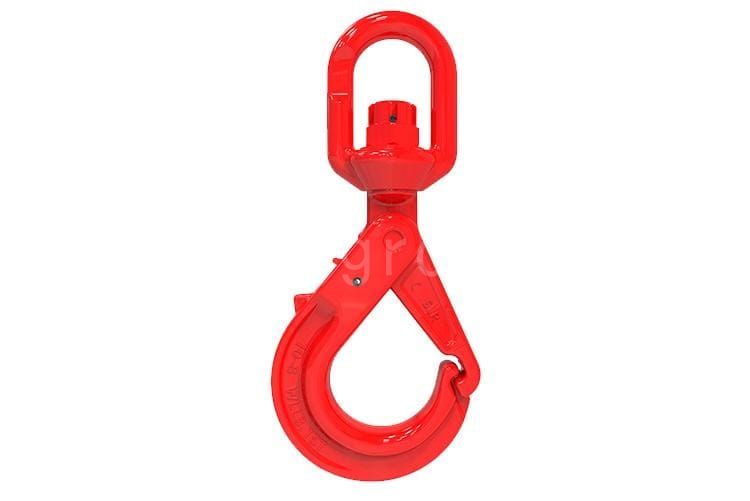

61Grade 80 self locking forklift lifting hoist swivel hooks — Grade 80 self-locking forklift lifting hoist swivel hooks

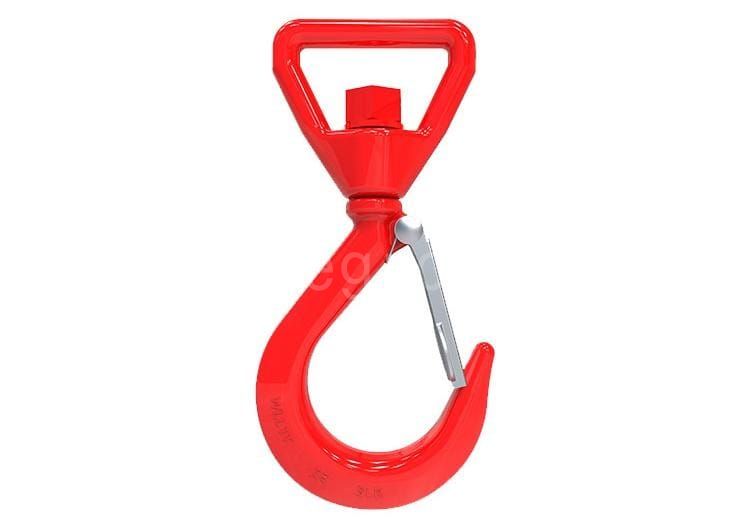

62Forged web sling chain hoist swivel hooks with safety latch — Forged web sling chain hoist swivel hooks with safety latch

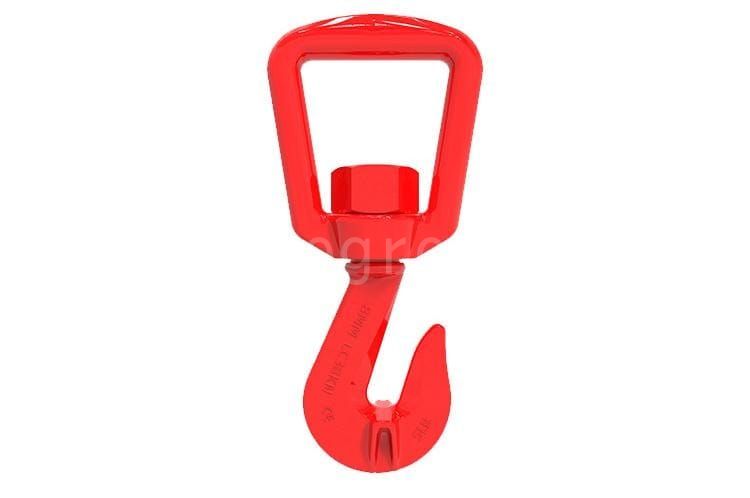

63Forged web sling swivel grab hooks — Forged web sling swivel grab hooks

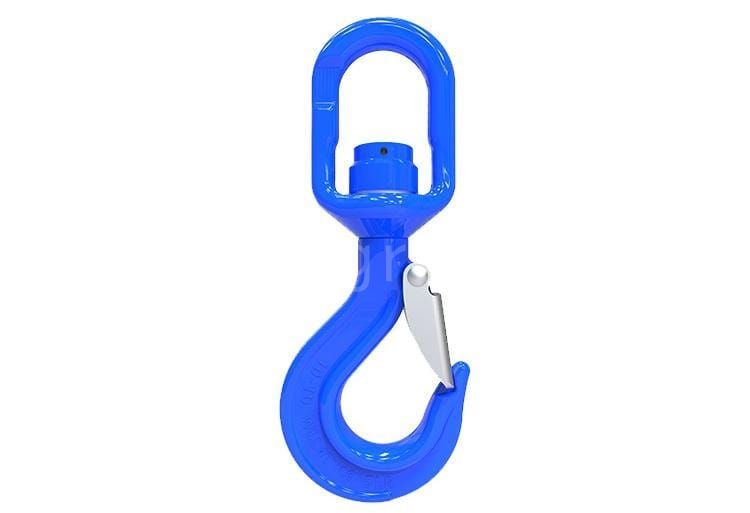

64Grade 100 swivel engine crane hooks with safety latch — Grade 100 swivel engine crane hooks with safety latch

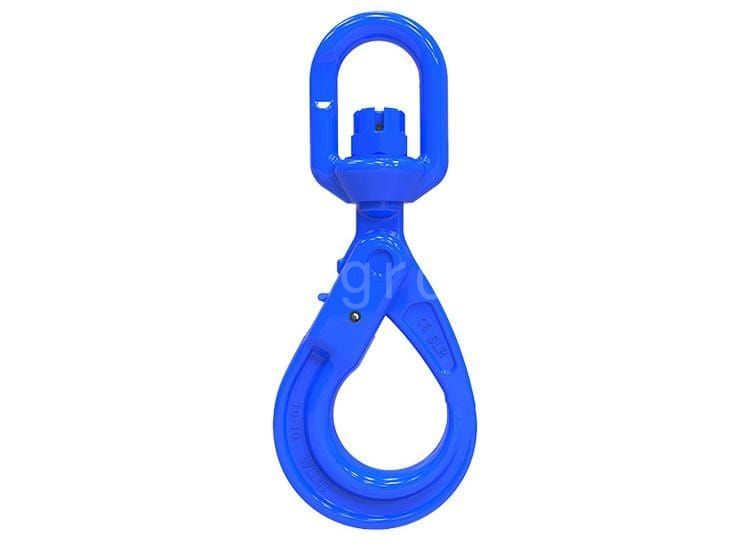

65Grade 100 swivel self locking engine hoist hooks — Grade 100 swivel self-locking engine hoist hooks

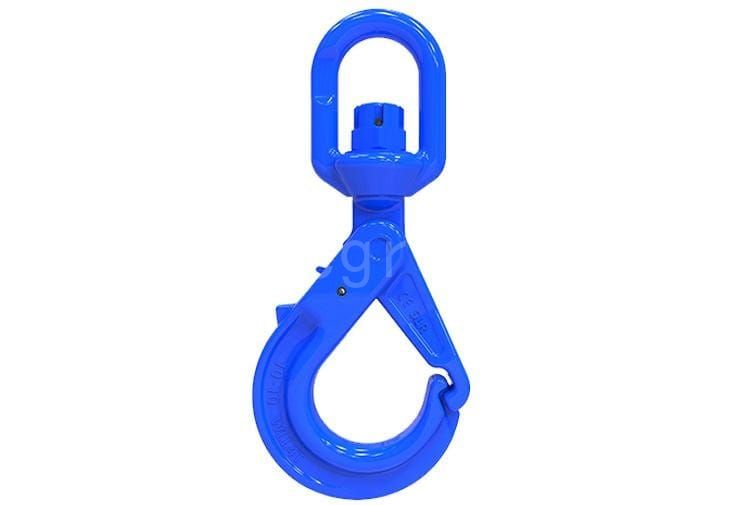

66Grade 100 self locking engine hoist swivel hooks — Grade 100 self-locking engine hoist swivel hooks

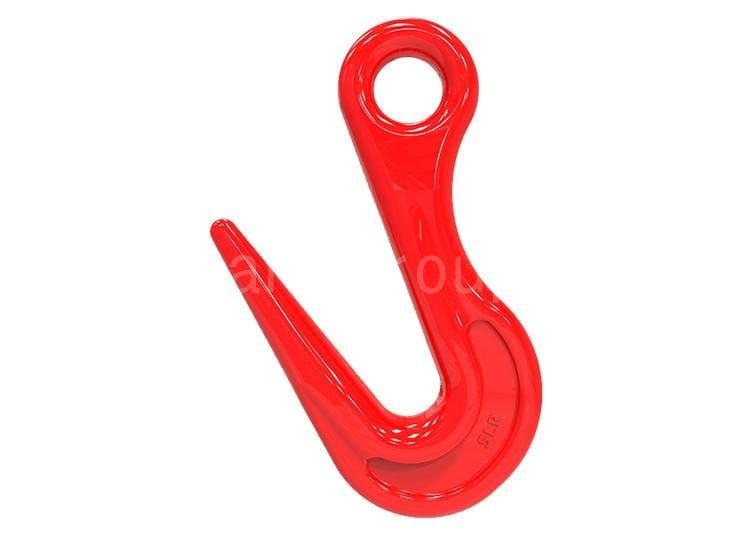

Sorting Hooks

Sorting hooks, also known as “lay out hooks” or “shake out hooks,” are used to sort or lay out products like flat plate, pipes, or other tube-shaped objects. They’re used in multi-leg sling assemblies for applications where the object or item will engage to the full depth of the throat of the hook.

Sorting hooks are used at a 30° to 45° angle to get full engagement—if the load is not fully engaged with the throat opening, significant reduction to the Working Load Limit of the hook can occur.

Sorting hooks are one of the few types of hooks designed not to use a latch. The use of a latch would limit the practical use of the hook when lifting plates and cylindrical loads where full throat engagement of the hook is required.

67Forged sorting hooks 1 — Forged sorting hooks

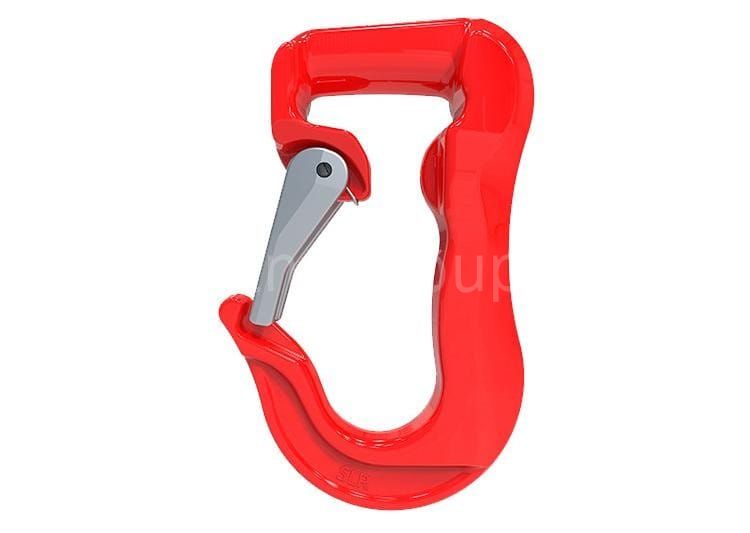

Web Sling Hooks

Web sling hook is designed to be used for webbing and round slings. The hook is slided to a belt or a sling.

68Grade 80 web sling hook — Grade 80 web sling hook

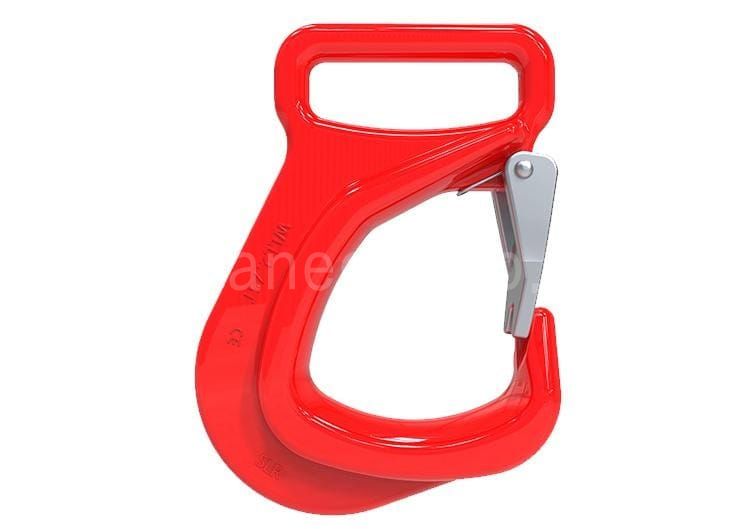

69Grade 80 eye web sling hook — Grade 80 eye web sling hook

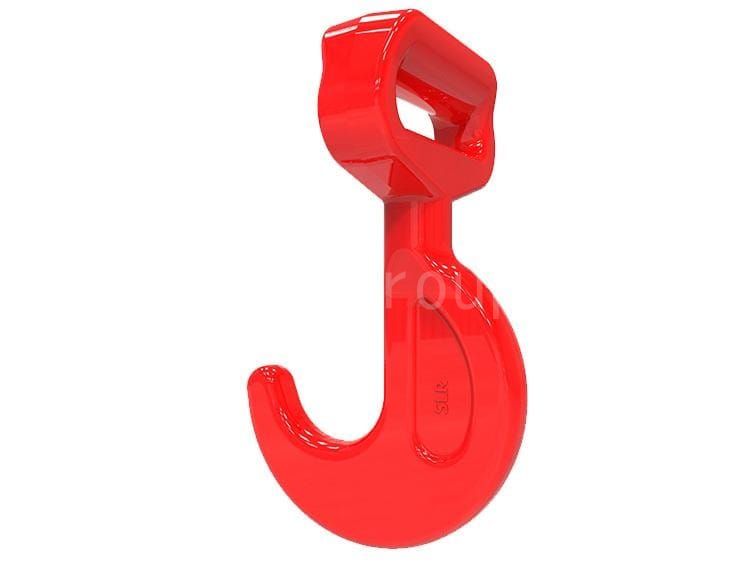

cangkuk anduh web 70Gred 80 twist — Grade 80 twist web sling hook

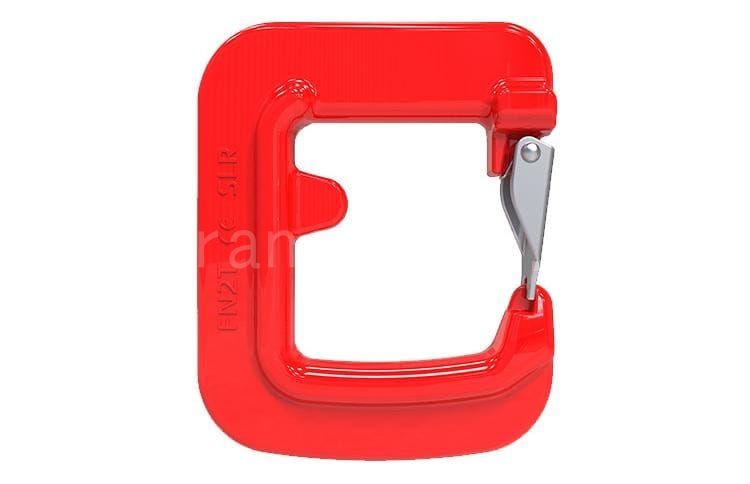

71Double sided web sling hook — Double-sided web sling hook

72Grade 100 web sling hook — Grade 100 web sling

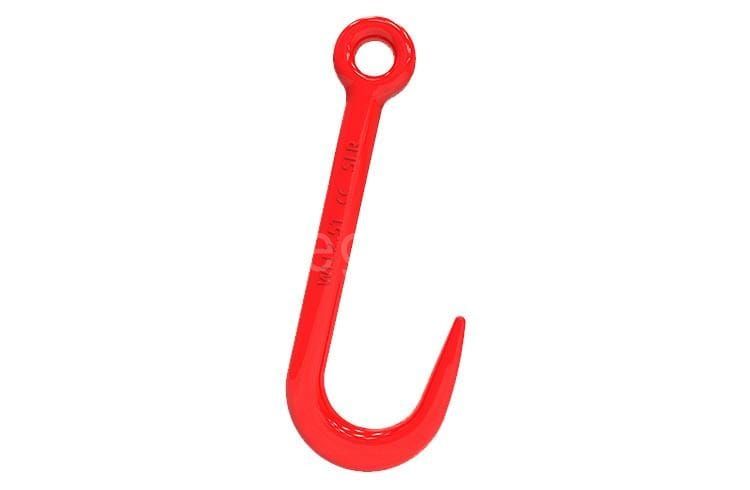

J Hooks

J-Hooks are most often used in industrial and manufacturing applications. They have a low-profile and slimmer design than traditional sling hooks, which allows them to be used with chains, hoists, and slings to efficiently move materials in applications where a sling hook, grab hook, or foundry hook would not be suitable.

J-Hooks are often used with eye bolts or an engineered lifting point on a load. A low-profile tip and throat can fit in much easier than a larger sling hook or foundry hook for a positive connection to the load.

J-Hooks are often custom-engineered for the specific application and are most commonly used without latches, but latch kits are available. The eye at the top of the hook can be configured in a variety of orientations depending on the application.

Because J-Hooks have less material than standard sling hooks, they have a lower Working Load Limit than most other types of hooks.
