2 Ton Overhead Crane: A Flexible and Efficient Solution for Modern Industry
Date: 15 aug, 2025
Introduction
Inhoudsopgave
In modern industrial production systems, large-scale lifting equipment handles the transportation of heavy loads, serving as a critical pillar of industrial operations. For handling materials, equipment, and components weighing 1–2 tons, the 2 ton overhead crane demonstrates unique suitability: it overcomes the efficiency limitations of small manual hoists while avoiding the spatial and cost redundancies of larger cranes. With its flexible operating radius and adaptable structural design, it plays an indispensable role in scenarios requiring medium-to-high lifting heights and high-precision positioning, where lightweight equipment falls short. This makes it an optimal solution for balancing load requirements with resource consumption. This article will provide a detailed introduction to the 2 ton overhead crane, covering its types, pricing, specifications, and application scenarios, while comprehensively analyzing the core reasons for its significant role in industrial production.
2 Ton Bridge Crane Type, Parameters, Features
LX Elektrische enkelligger onderslung kraan Description: A lightweight lifting device suspended and operating on an I-beam track installed at the upper part of a factory building. Features: More compact and lightweight structure, easy to install and maintain. Parameters:
Span: 3~16m
Lifting Height: 6~18m
Lifting Speed: 8/0.8 single or dual speed optional
Travel Speed: 20/30 m/min
Motor Model: ZDYI 12-4

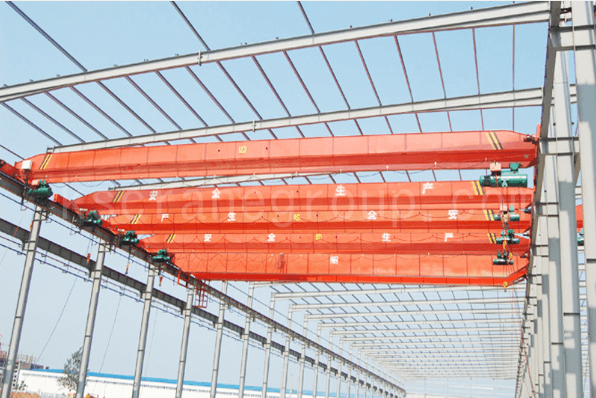

LD Enkelligger Bovenloopkraan Description: A bridge crane that uses an electric hoist as the lifting mechanism, with a single beam welded from steel plates and I-beams serving as the main load-bearing beam. Features: Simple structure, easy to install, and widely applicable. Parameters:
Span: 7.5~28.5m
Lifting Height: 6~30m
Lifting Speed: 8/0.8 single or dual speed optional
Traveling Speed: 20m/min
Total Weight: 1.8~6.9 tons
Motor: Cone squirrel-cage model
Operational Methods: Ground operation or control room operation, with control room available in open or enclosed forms

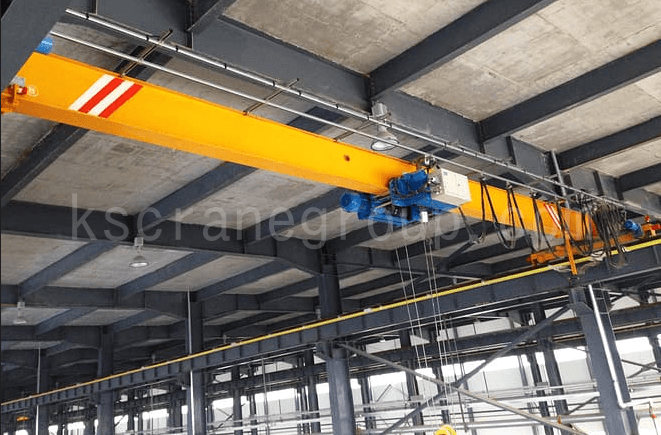

LDC Single Girder Low Headroom Overhead Crane Description: Capable of providing a higher lifting height within the same factory space, approximately 500mm–1000mm. Features: Saves vertical factory space and improves space utilization efficiency. Parameters:
Span: 7.5~31.5m
Lifting Height: 6~30m
Lifting speed: 8/0.8 single or dual speed optional
Traveling Speed: 20m/min
Motor: Cone quirrel-cage model
Operational Methods: Ground operation or control room operation, with control room available in open or enclosed forms

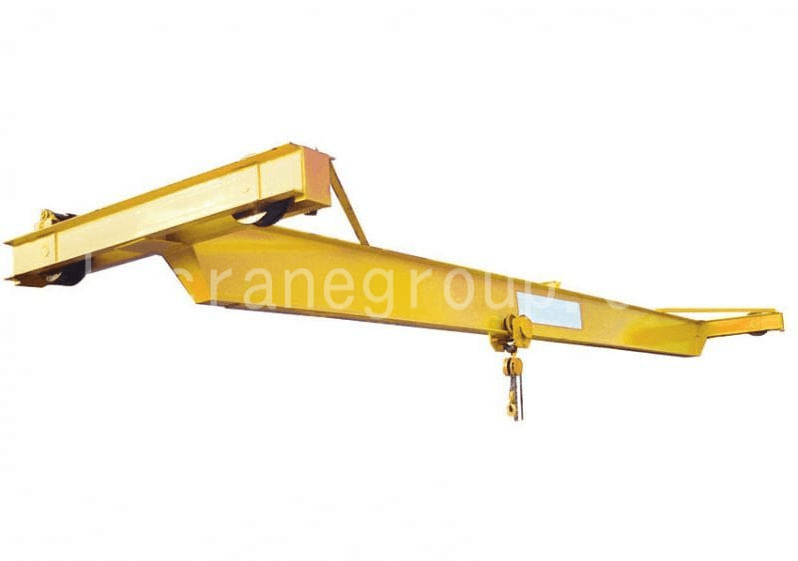

2 ton Manual Single Girder Overhead Crane Description: A bridge crane that relies on manual operation to perform lifting tasks in environments without a stable power supply. Features: Simple structure, easy to use, stable and reliable, and straightforward to operate. Parameters:
Span: 3~12m
Lifting Height: 3~12m
Track Model: 124a-136c
Supporting Trolley model: SDX-3.WA2
Supporting Hoist Model: HS3

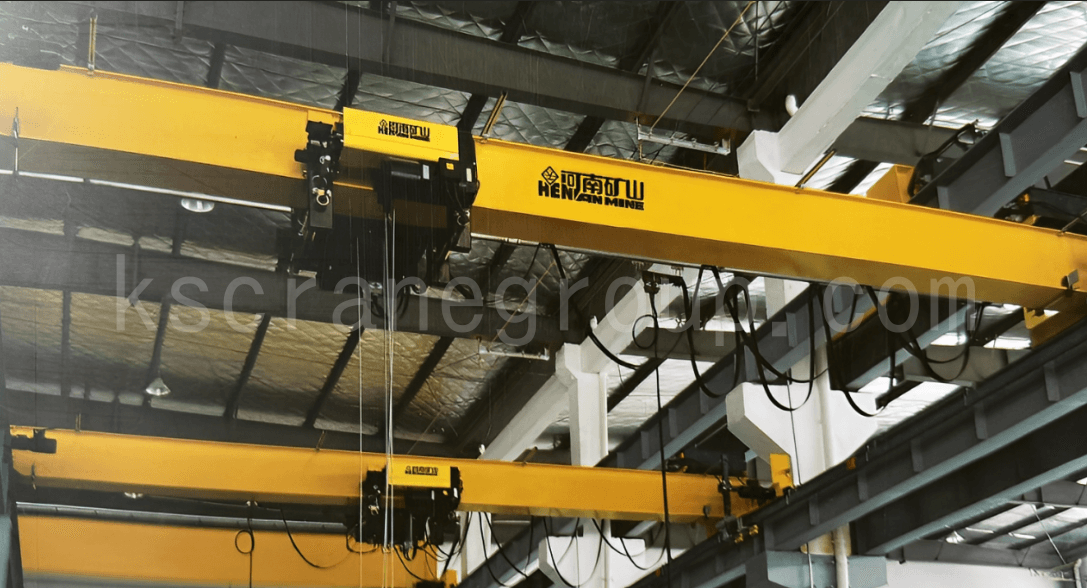

European Top Running Overhead Crane Description: A modern crane with a modular design and a high degree of component interchangeability. Features: Lightweight self-weight, low operating noise, and more energy-efficient use. Parameters:
Span: 9.5~24m
Lifting Height: 6~18m
Lifting Speed: 0.8/5 m/min
Total Weight: 1.62~4.02 tons

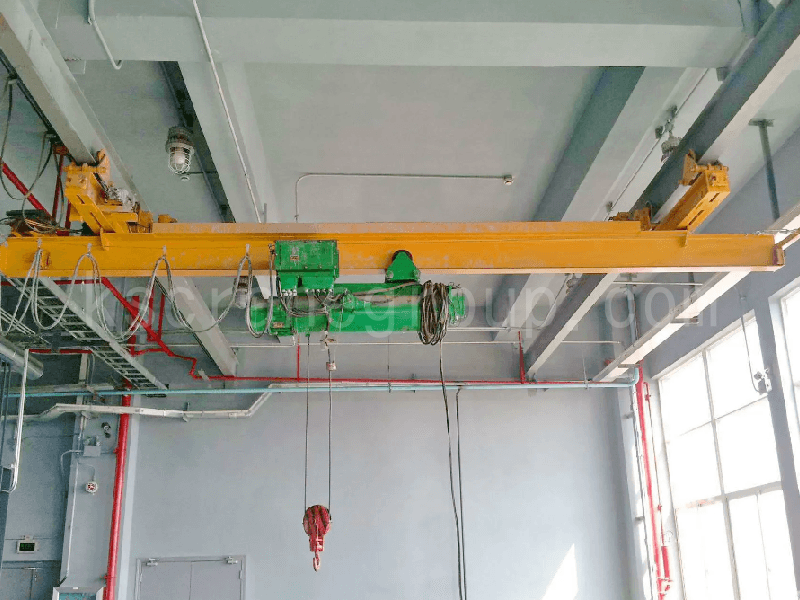

LB Explosion-Proof Single Girder Overhead Crane Description: A bridge crane suitable for environments containing flammable and explosive mixtures such as gases and dust. Features: Equipped with electrical explosion-proof measures and components partially made from spark-free materials. Parameters:
Span: 7.5~28.5m
Lifting Height: 6~30m
Lifting Speed: 8/0.8, 7/0.7, 3.5/0.35 single or dual speed optional
Traveling Speed: 20m/min
Electric Hoist type: HB, BCD, BMD
Explosion-proof Rating: Exd II BT4, Exd III CT4

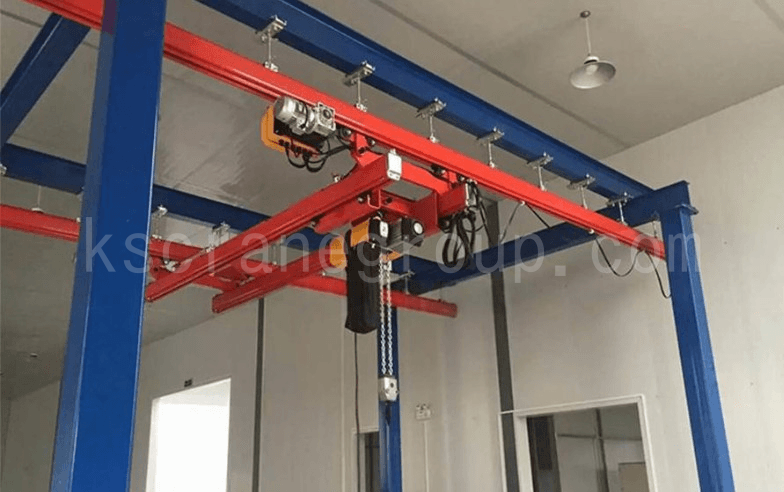

Free Standing Workstation Bridge Crane Description: Utilizes a steel structure support bridge and lifting mechanism installed on the ground to achieve three-dimensional material handling. Features: Lightweight, flexible, and easy to install and disassemble. Parameters:
Lifting Capacity: 80kg~3t
Operational Methods: Ground operation, remote control
Span: Single Beam Span: <9m; Double Beam Span: Customizable

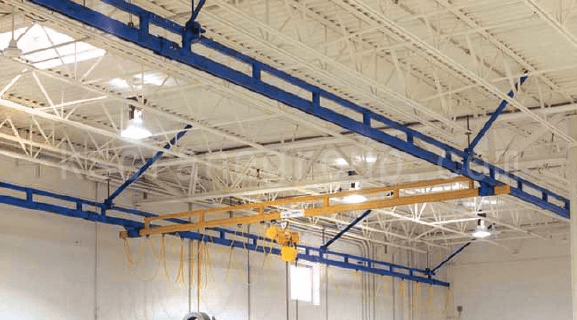

Ceiling Mounted Bridge Crane Description: A lifting device that operates on a track system installed on the ceiling or an overhead structure. Features: Enables unobstructed floor passage, lightweight self-weight, and low resistance. Parameters:
Lifting Capacity: 80kg~2 tons
Lifting Height: Customizable
Span: 3~10m
Working Class: A4

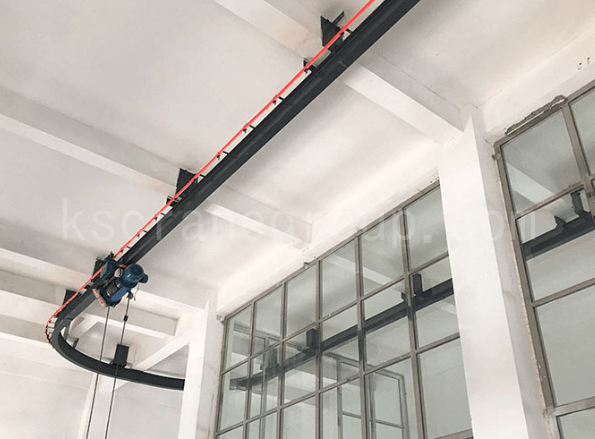

Monorail bovenloopkraan Description: A simple lifting device that operates along a single I-beam or H-beam track. Features: Supports circular design, inter-span transfer, and adapts to irregularly shaped workshops. Parameters:
2 Ton Bridge Crane Core Application Scenario Display

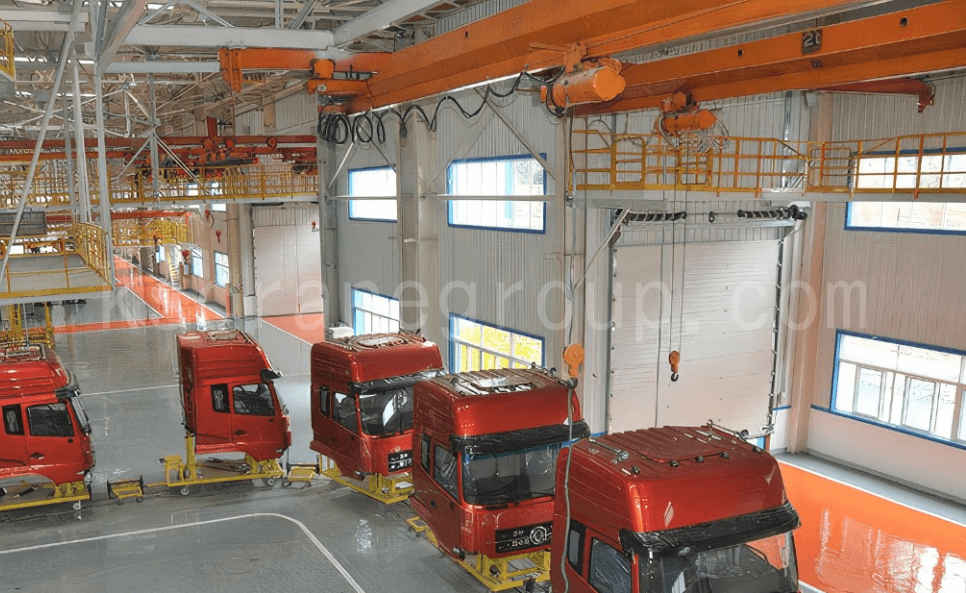

Automobile Manufacturing
In the automotive manufacturing process, the 2-ton bridge crane, with its suitable lifting capacity and flexible operational characteristics, is deeply integrated into the body stamping and welding, powertrain, and final assembly stages, precisely addressing material handling and production line coordination challenges. In the automotive stamping workshop, it lifts metal sheets using vacuum suction cups to achieve damage-free handling; Equipped with advanced control systems and high-precision drive units, these cranes enable precise material positioning, meeting the stringent requirements for component assembly accuracy in automotive manufacturing. In powertrain and final assembly workshops, modular crane systems cover the entire material handling path from storage areas to assembly lines, and can be customized to design specific paths using flexible installation methods to avoid pipelines and accommodate multi-station material flow.

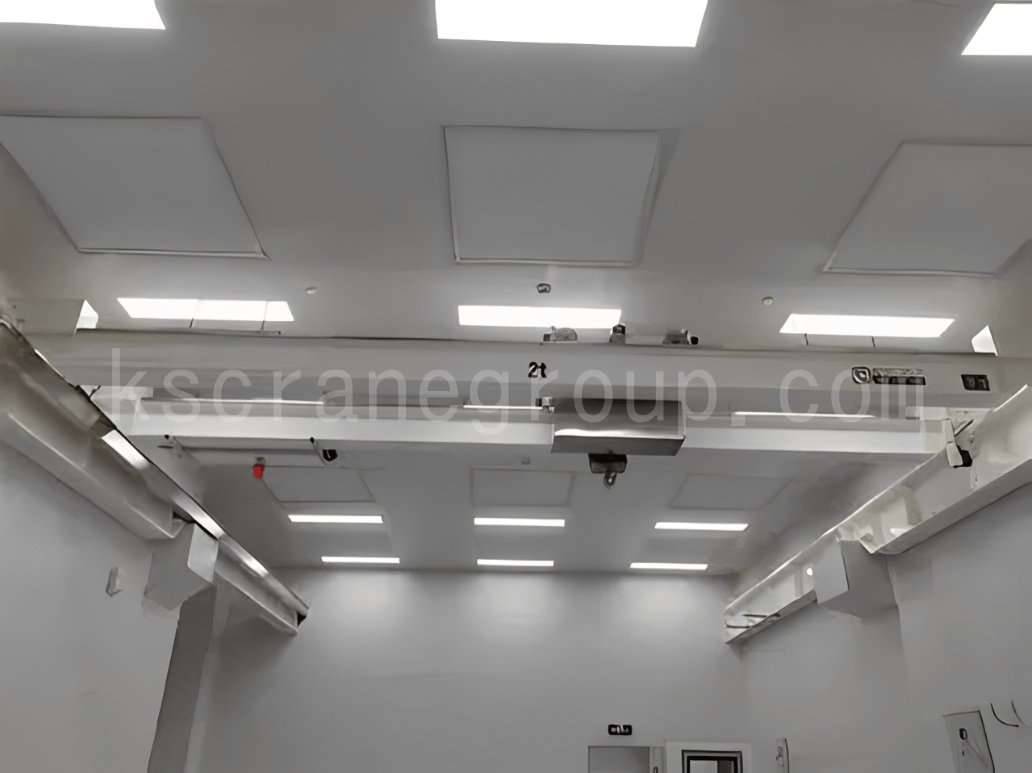

Precision Electronics Industry
In the chip production workshops of the electronics industry, the 2-ton overhead crane, equipped with a high-precision variable frequency control system and specialized lifting tools, is primarily used for transporting chip manufacturing equipment. For example, in a cleanroom, it lifts and moves components such as photolithography machine transfer modules and ion implanter chamber parts from storage areas to production stations. During operation, the crane uses custom lifting tools to stably hoist the equipment, relying on the precise control system for slow and steady movement. When nearing the target position, fine adjustments are made to ensure the equipment is accurately placed on the installation base. The entire process is smooth and precisely positioned, meeting the stringent requirements for transport accuracy in chip manufacturing equipment and preventing damage due to shaking or misalignment.
Maintenance And Support For Large-Scale Equipment
In large-scale machinery systems, such as cranes installed on the top of hydroelectric dam structures, the 2-ton single-beam overhead crane primarily serves maintenance and support functions. When critical components like the lifting or operating mechanisms of large machinery malfunction, or during routine maintenance and replacement of wear-prone parts, the 2-ton crane can flexibly hoist tools and spare parts required for repairs. It assists maintenance personnel in performing inspection and repair operations on the main body of large machinery, ensuring its long-term stable operation. As an indispensable auxiliary device in the maintenance system, it provides essential support for the reliable performance of large-scale machinery.

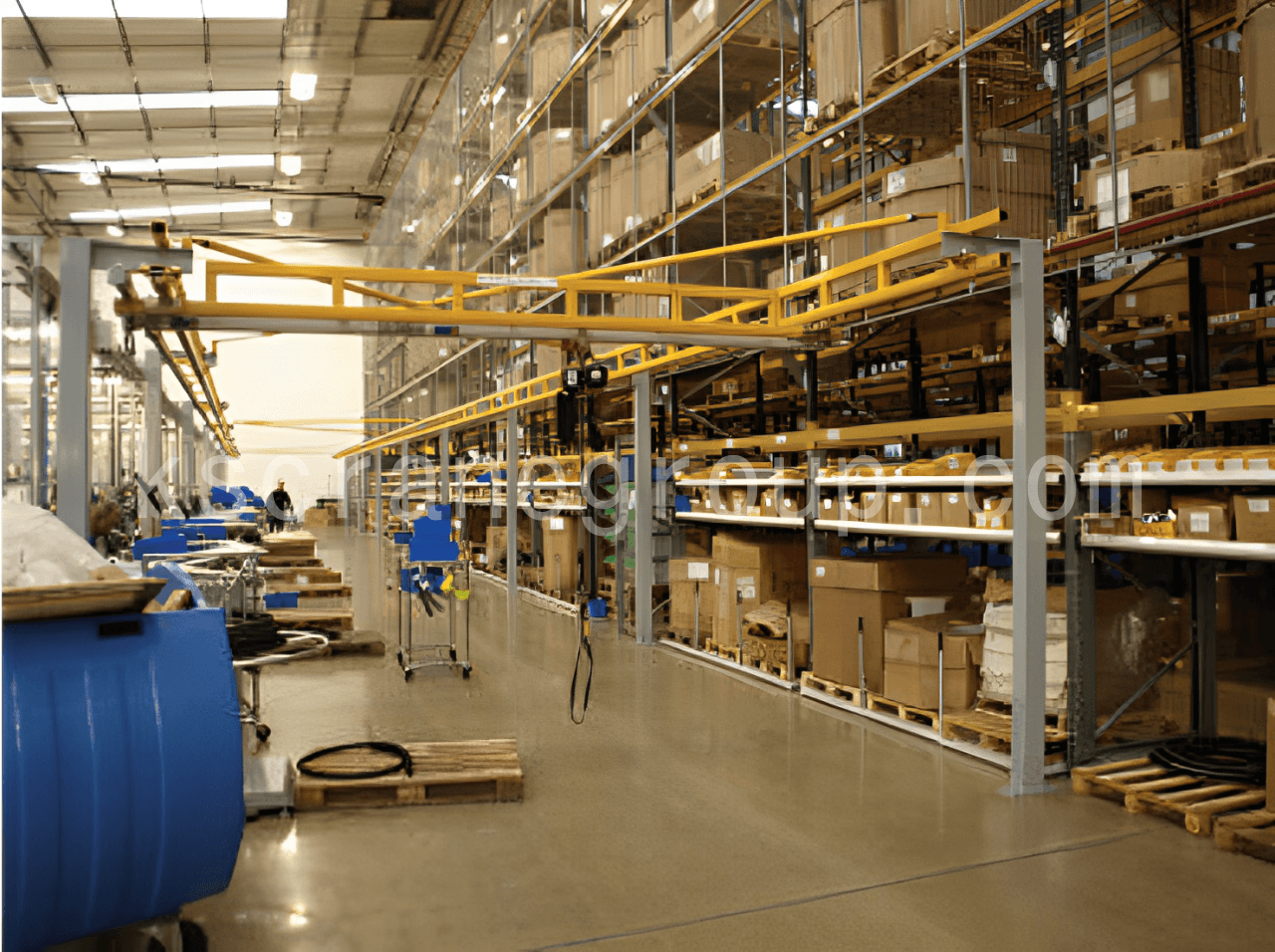

Warehousing And Logistics Transfer
In the warehousing and logistics industry, the 2-ton overhead crane plays a critical role. Its flexible operation and suitability for small to medium-sized heavy loads allow it to navigate seamlessly between different storage zones in a warehouse, efficiently handling cargo in cross-regional transport scenarios. When dealing with medium-to-high rack stacking, it can precisely lift and place or retrieve goods, avoiding damage from manual stacking. During equipment maintenance, it quickly hoists heavy components for repair, helping to reduce downtime. Additionally, with safety protection devices, it minimizes operational risks, comprehensively enhancing the efficiency and safety of all aspects of warehousing and logistics operations.
Kuangshan Crane: A Pioneer in Overhead Crane Manufacturing for Over 20 Years
Kuangshan Crane, established in 2002 and headquartered in Changyuan City, Henan Province—known as China’s “Hometown of Lifting Machinery”—is a professional manufacturer and service provider of lifting equipment. Integrating research and development, design, manufacturing, sales, and service, the company has focused for over 20 years on producing more than 110 types of cranes and components across three major categories, including overhead cranes, gantry cranes, and electric hoists. Committed to delivering systematic solutions and full lifecycle services, Henan Kuangshan continuously drives the crane industry toward intelligence, sustainability, and high-quality development, contributing to innovation and advancement in the lifting machinery sector.
With its robust comprehensive strength, Kuangshan Crane steadily progresses in the industry, providing reliable support to global customers.
Scale and Capacity
Since its inception in 2002, the company has grown significantly, boasting a facility area of 1.62 million square meters and a workforce of over 5,100 employees, laying a solid foundation for efficient operations.
Research Achievements
As a high-tech enterprise, it has deep technical expertise. Its technical team, comprising over 10 senior industry experts and more than 200 mid-to-senior engineers, focuses on innovative design and development, securing over 700 national patents and provincial scientific achievements.
Production and Sales
With outstanding production capabilities, the company achieved an annual production and sales volume of over 128,000 units (sets) of various lifting equipment in 2024, serving tens of thousands of customers across 122 countries with the highest cost-performance products and services.
Collaboration Network
The company has established multiple R&D platforms, including a national enterprise technology center and a provincial industrial design center, and maintains long-term partnerships with institutions such as the Beijing Lifting and Transportation Machinery Design and Research Institute and Harbin Institute of Technology, promoting technological innovation through industry-academia-research integration.
Awards and Honors
Henan Kuangshan has received over 500 accolades, including the “China Industry Award Nomination,” “National Quality Benchmark,” and “National Green Factory,” earning widespread recognition in the industry.
Henan Kuangshan 2-Ton Overhead Crane Export Cases

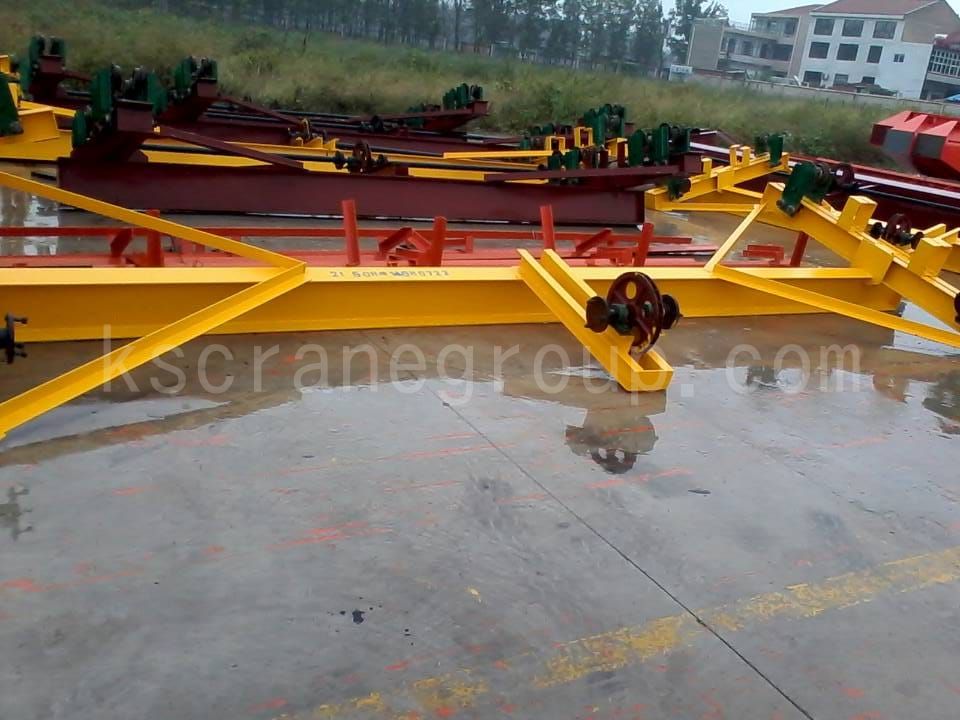

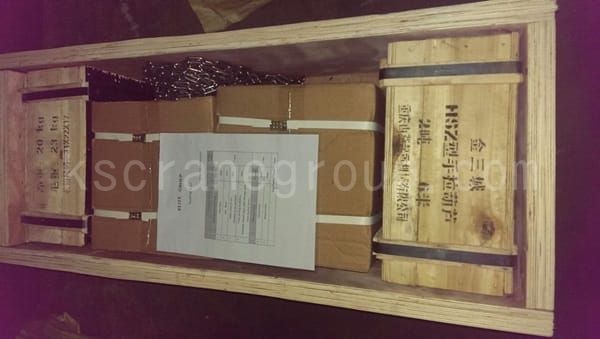

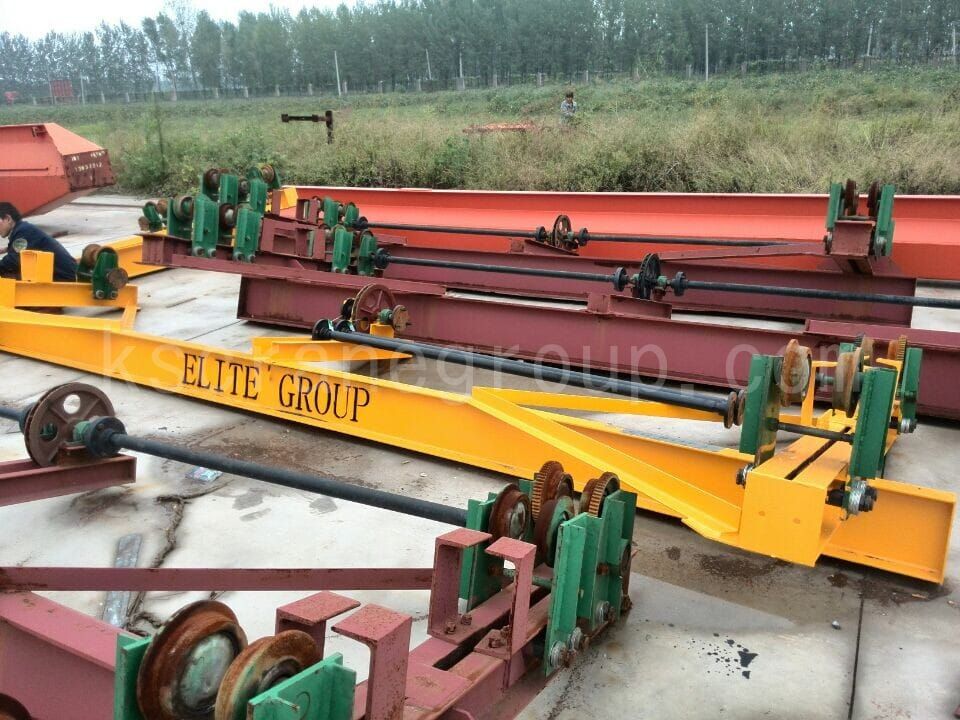

Pakistani Customer Repurchases 5 Sets Of SL-Type 2 Ton Manual Suspended Single Girder Cranes
On July 20, 2014, the Pakistani customer ordered 4 sets of SL-type manual suspended single-girder bridge cranes. Prior to this, the customer visited our factory and had in-depth discussions with our technical team regarding their requirements. Our engineering team then recommended the SL-type manual suspended single-girder bridge cranes. After receiving the goods, the customer was highly satisfied with the quality of our products and services, deciding to establish a long-term partnership with us. In September, the customer placed an additional order for 5 sets of SL-type 2-ton manual suspended single-beam cranes. Manual cranes are typically used in areas without electricity or with unstable power supply. Suspended bridge cranes do not occupy floor space but require the factory roof to have sufficient load-bearing capacity. Product specifications • Lifting weight: 2 ton • Lifting height: 4.57m • Span: 5.08m • Operating mode: Manual Project image display:

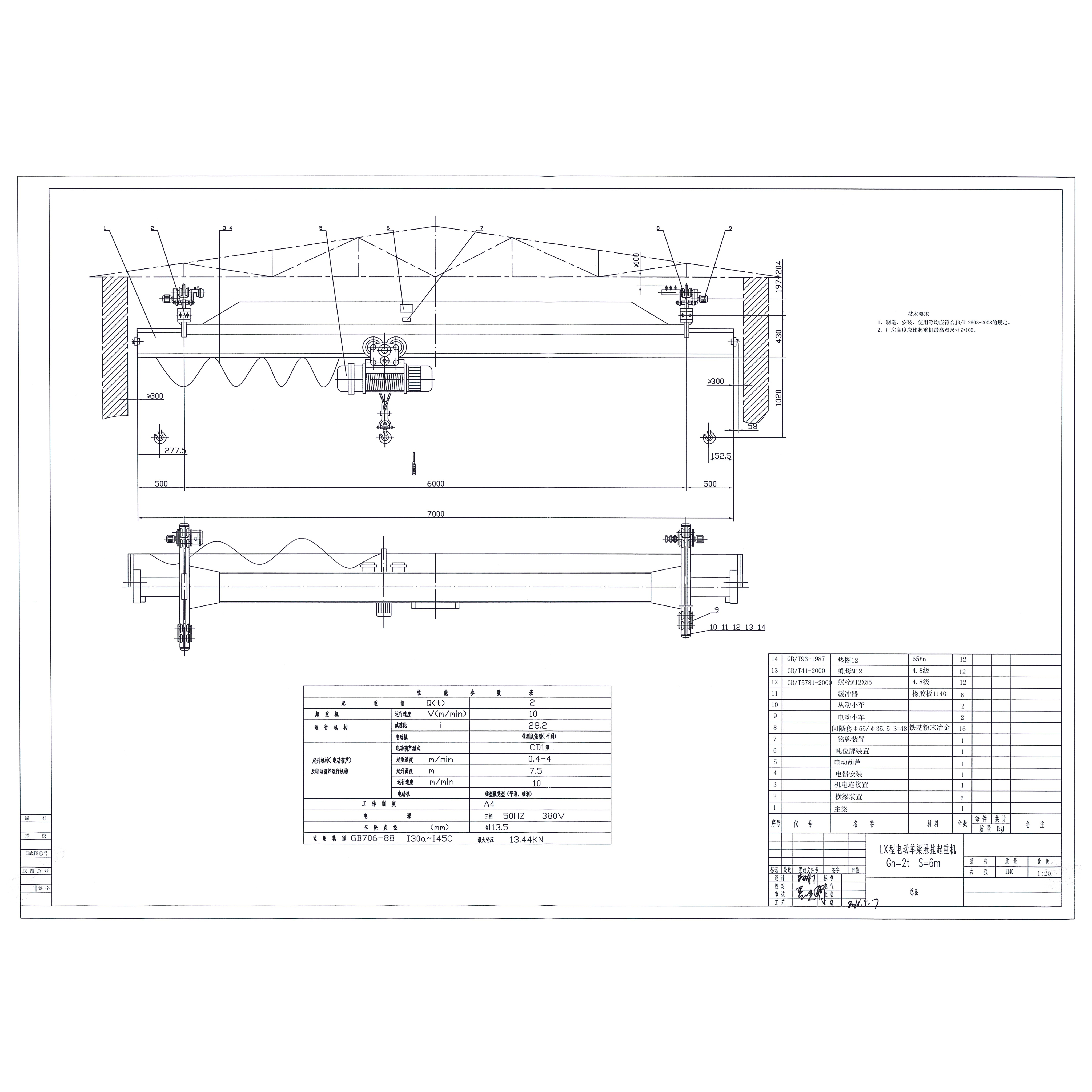

2 Ton Electric Single Girder Underslung Crane for The China Gas Turbine Research Institute
The client is a research institute in the aerospace industry, whose core laboratory and assembly workshop are responsible for the precision machining, performance testing, and assembly and debugging of core components for aircraft engines. Given the unique nature of the research and production environment, a single-girder bridge crane is required to meet the needs of transporting high-precision components, maintaining and installing experimental equipment, etc.: it must be capable of lifting irregularly shaped components and achieving millimeter-level positioning to ensure the efficient advancement of research and production.
Speed control method: Variable frequency speed control for lifting
Working location: Indoor, altitude below 1000 m
Working environment: Maximum temperature 40°C; minimum temperature -20°C, maximum humidity 80%
Power supply: AC 380(1±10%) V 50 Hz
Samenvatting
The 2 ton overhead crane, with its diverse types, adaptable specifications, and reasonable pricing, plays an indispensable role in modern industrial production and logistics operations. From precise handling in automotive manufacturing workshops to high-precision equipment transport in the electronics industry, from efficient scheduling in warehouse logistics to auxiliary tasks in large-scale machinery maintenance, and even in material handling at small construction sites, its presence is ubiquitous. The 2 ton overhead crane for Kuangshannot only fills the gap left by lightweight lifting equipment in medium-to-high lifting heights and high-precision positioning but also avoids the resource and cost inefficiencies of larger cranes. With its flexible operation methods and reliable performance, it provides strong support for enhancing production efficiency, ensuring operational safety, and optimizing production models across various industries. Whether operated manually or electrically, and whether in standard or customized designs, the 2 ton overhead crane continues to inject vitality into industrial development with its unique advantages. It serves as an ideal choice for balancing efficiency, precision, and cost-effectiveness, and will continue to play an increasingly important role as the demands of various industries evolve.
