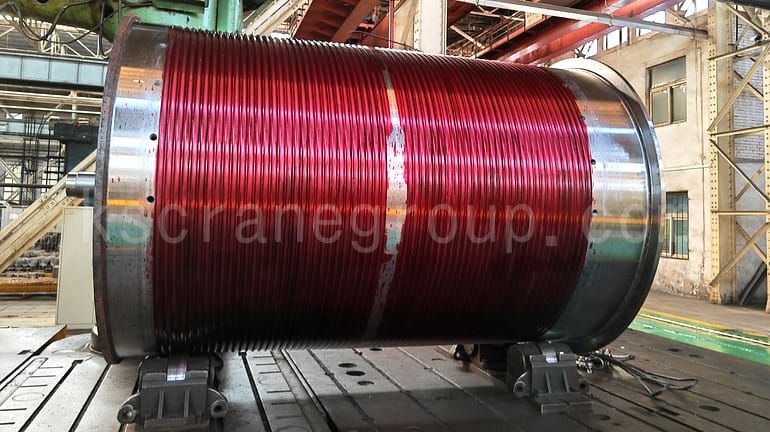

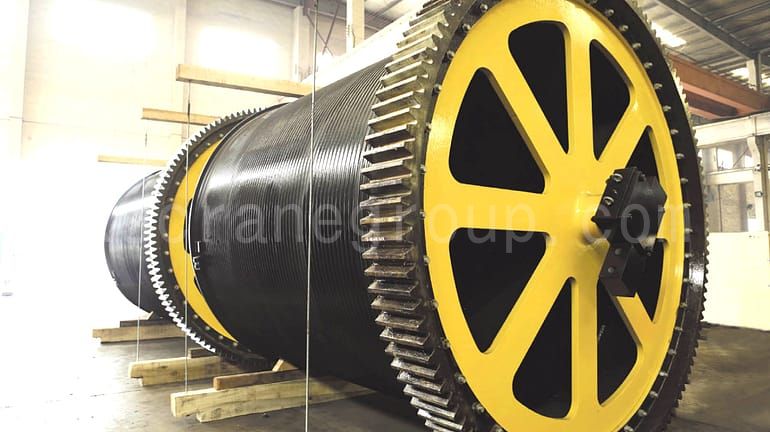

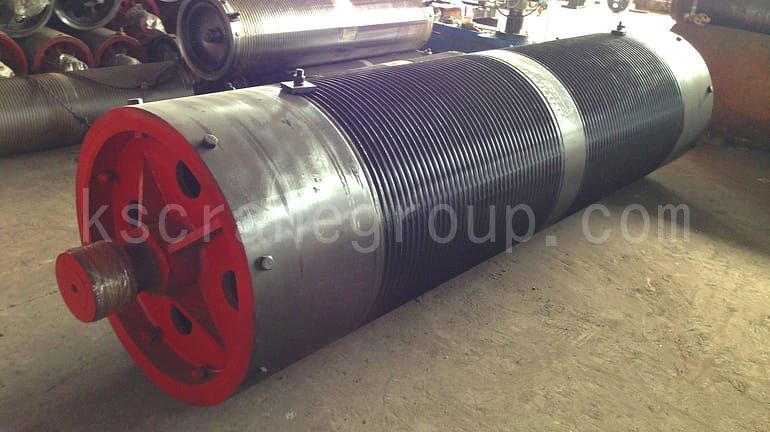

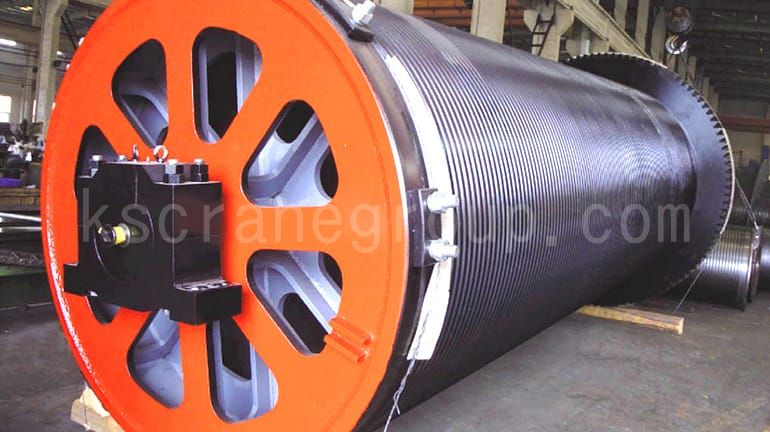

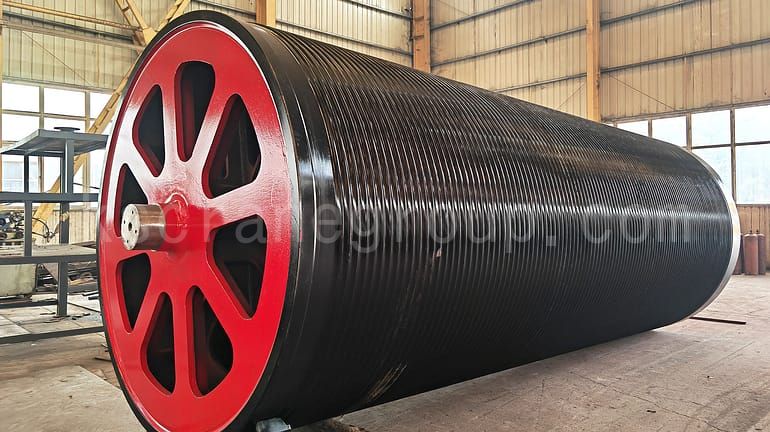

Drahtseiltrommel
Die Drahttrommel eignet sich für Kranhebeeinrichtungen wie z.B. elektrische Hebezeuge, sie hat verschiedene Arten von Folien. Der Wickeldorn wird Hebe-Mechanismus von Drahtseil verwendet werden, um Trommel und Trommelwelle Teile innerhalb von Getriebe-Ring-Flanschlager und Gehäuse Wickeltrommel Trommelgruppe beim Rollen von Komponenten, wie z. B. mit rotierenden Wellenende bis zur Endlage Endschalter, muss sicherstellen, dass Trommelwelle und steigende Endschalter Welle Synchronisierung.
Product Application of Crane Drum

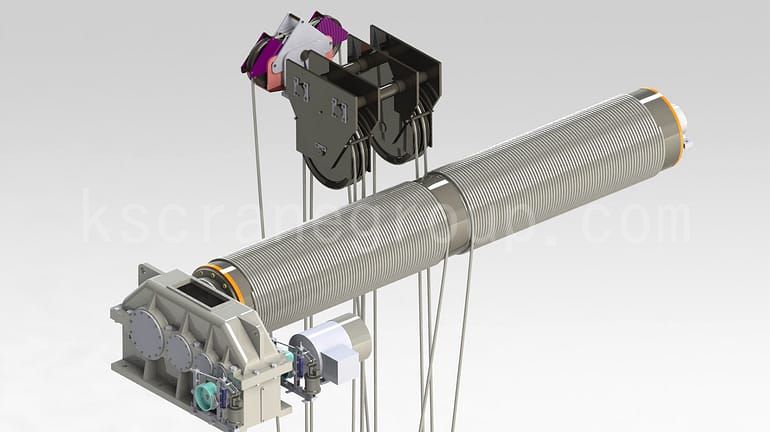

The drum set is one important part of the crane lifting equipment. It is responsible for winding the wire rope, caring the tension and pressure of the lifting weight, and lifting and carrying the heavy objects with the cooperation of other related crane structures.
The drum set is widely used in various lifting equipment: single girder overhead crane, double girder overhead crane, gantry crane, port crane, ship winches, winches, beam lifting mechines, three-dimensional garages, all-terrain cranes, etc.
Classification of Crane Drum
According to the adaptation equipment: electric hoist reel, double beam reel group, hoist reel, winch reel, three-dimensional garage reel, etc.
Material: Gray iron, cast steel, steel reel 3 kinds. Gray iron is HT200, cast steel is generally cast steel 20#, steel plate has Q235B, Q345B, 45# and so on.

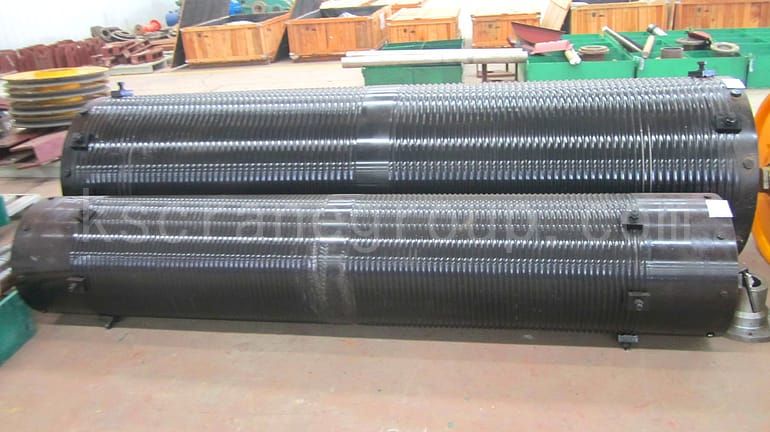

Cast iron type crane drum
- The material of this kind of crane drum is cast iron HT200.
- Cast iron type crane drum is more prevalent than the other two as follows.
- Centrifugal casting is used in the process of production.
- The wire rope can be better protected owing to the material of cast iron.
Cast steel type crane drum
- The material of this kind of crane drum is cast steel.
- It is rarer than cast iron type and steel plate crane drum because of the lower castability.
- Centrifugal casting is used in the process of production.

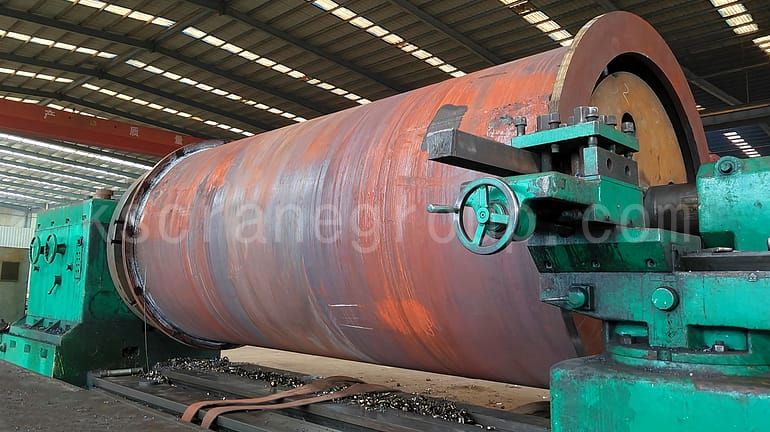

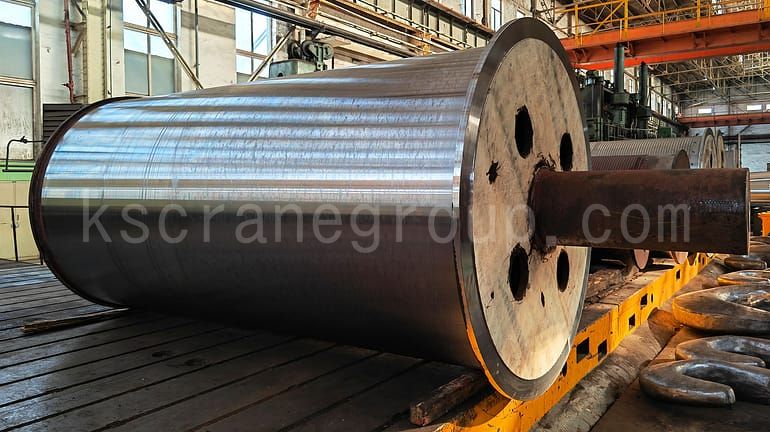

Steel plate type crane drum
- The material of this kind of crane drum is steel plate, Q235, Q345.
- It is more common than cast steel type crane drum.
- Welding is used in the production process of steel palte type crane drum .
- It is easy and convenient to produce.
Merkmale und Vorteile
- We can produce parts based on clients' samples or drawings and arrange special engineers to inspect the quality of products.
- Wir können das beste Lager für den Kunden liefern.
- Alle Artikel werden während jedes Arbeitsvorgangs und nach der endgültigen Herstellung des Produkts gründlich geprüft und getestet, um sicherzustellen, dass das Produkt in bester Qualität auf den Markt kommt.
- Spulenmaterial kann im Allgemeinen verwendet werden, wenn Eisen Spezialstahl benötigt oder Stahlplatten durch Schweißen hergestellt werden.
