Portable Gantry Cranes: A Movable, Easy-to-Transport, Multi-Scenario Lifting Solution

Portable gantry cranes, also known as a mobile gantry crane, is a light-duty lifting device supported by independent legs that move on wheels.
The portable gantry crane consists of a main beam, legs, a hoisting mechanism, ground beams, and wheels. Compared with heavy-duty gantry cranes, it features a simpler and lighter structure, allowing for easy movement, disassembly, and reassembly in workshops or construction sites. It boasts the characteristics of flexible deployment and a lightweight structure.
Portable gantry cranes are widely used in various indoor and outdoor locations, such as garages, factories, and construction sites, for lifting and transporting materials. They are cost-effective lifting equipment.

5 Types of Small Portable Gantry Cranes: Covering Multi-Scenario Needs, Efficiently Enhancing Lifting Operation Efficiency

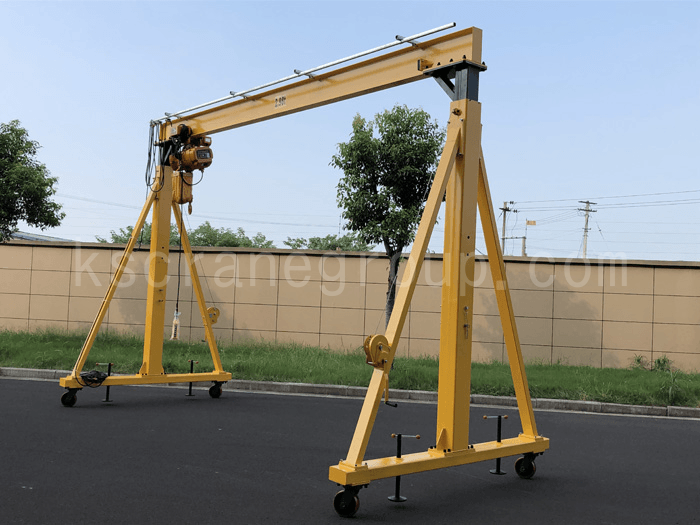

Adjustable Portable Gantry Cranes

The legs of the adjustable small portable gantry cranes usually adopt a nested structure. The flexible adjustment of the main beam height is achieved by adjusting the telescopic length of the legs. This design greatly improves the scenario adaptability of the lifting equipment. Even in places where there are obstacles such as pipes and beams above the ceiling, it can flexibly adjust the height to avoid obstacles for operation. At the same time, there is no need to purchase multiple devices for different height requirements, which not only reduces the equipment investment cost of enterprises but also eases the pressure of equipment management.

特点：

• Height Adjustable: The adjustable small portable gantry cranes allows flexible height adjustment, eliminating the need to purchase multiple machines for different scenarios and saving costs.
• Diversified Adjustment Methods: It supports various adjustment methods, including hydraulic, manual, and electric.
• Strong Space Adaptability: It meets different space and height requirements, making it suitable for low-rise workshops or factories with obstacles on the ceiling.
• Sturdy Steel Structure: Adopting a steel structure, it is sturdy and durable with a long service life.
• Optional Foot Brake: Equipped with an optional foot brake, it features simple operation, safety, and reliability.

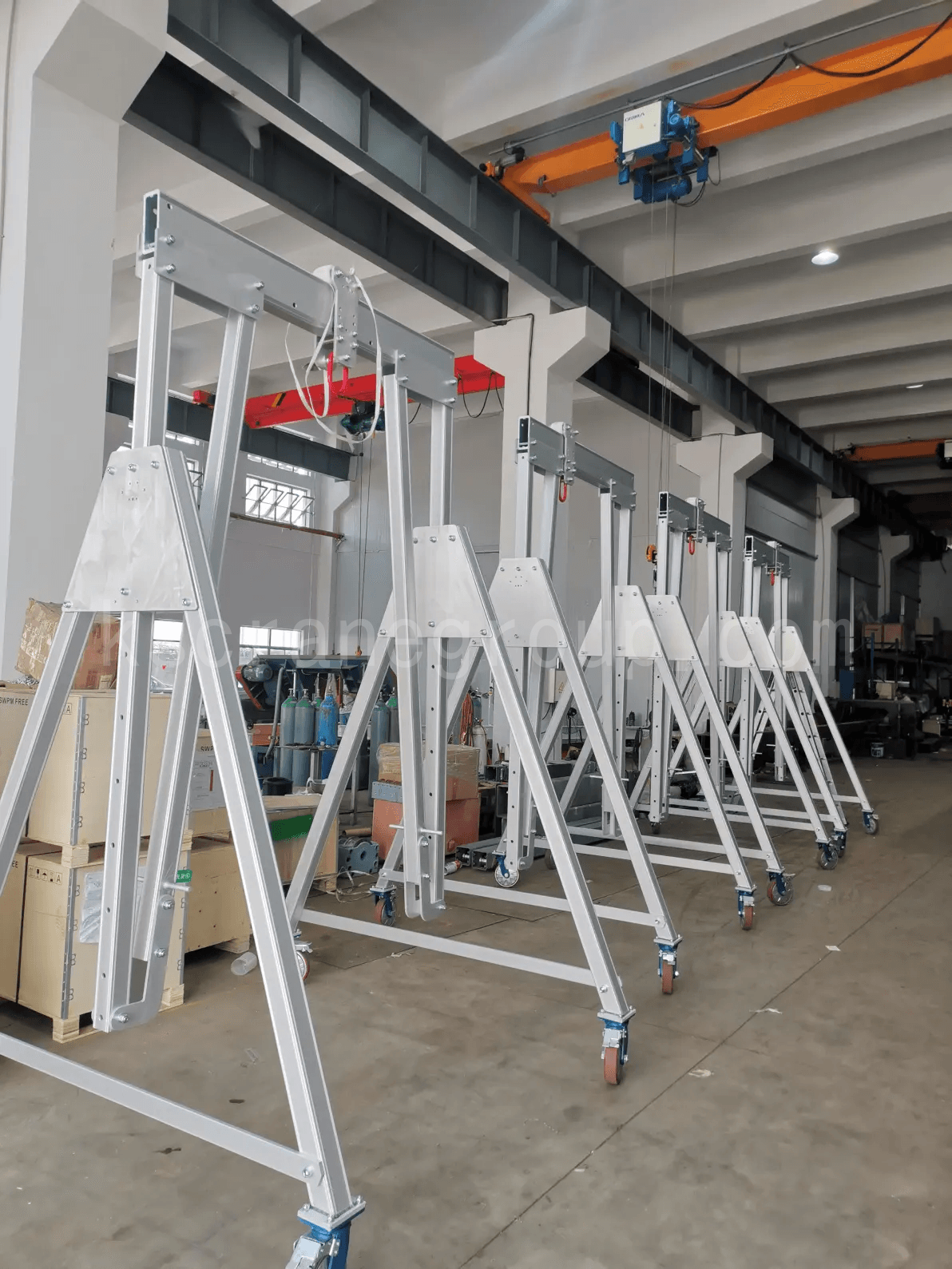

Portable Aluminum Gantry Cranes

The small portable aluminum gantry crane adopts lightweight materials, which not only makes manual transfer labor-saving and convenient, but also can further save energy when matched with electric drive. It has a smooth surface that is easy to clean and does not easily produce pollutants such as dust and iron filings. Meanwhile, it possesses excellent corrosion resistance and deformation resistance.

This portable aluminum gantry crane is especially suitable for clean rooms in pharmaceutical, electronics, precision manufacturing and other industries. It is also applicable to scenarios with high environmental cleanliness requirements, such as food processing.

特点：

• Ideal for Clean Environments: The small portable aluminum gantry crane is suitable for places or industries with cleanliness requirements, such as clean rooms.
• Excellent Corrosion Resistance: It naturally forms a corrosion-resistant film, with a flat and smooth surface that is easy to clean.
• Labor-Saving Lightweight Design: Made of lightweight materials, it is more labor-saving to push manually.
• Flexible & Customizable Structure: It has a flexible structure, and telescopic or foldable models can be customized.

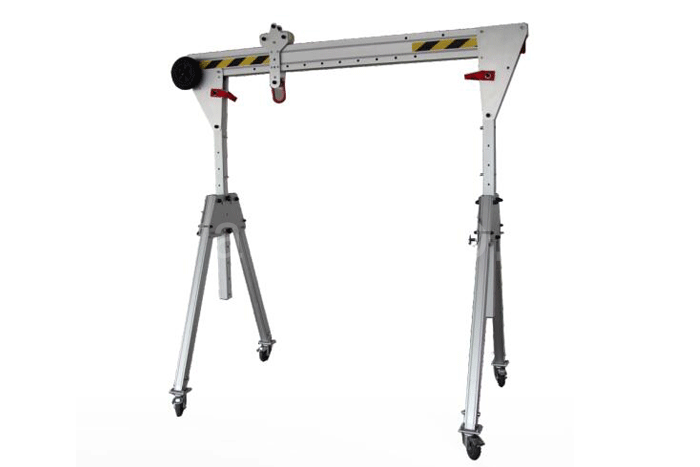

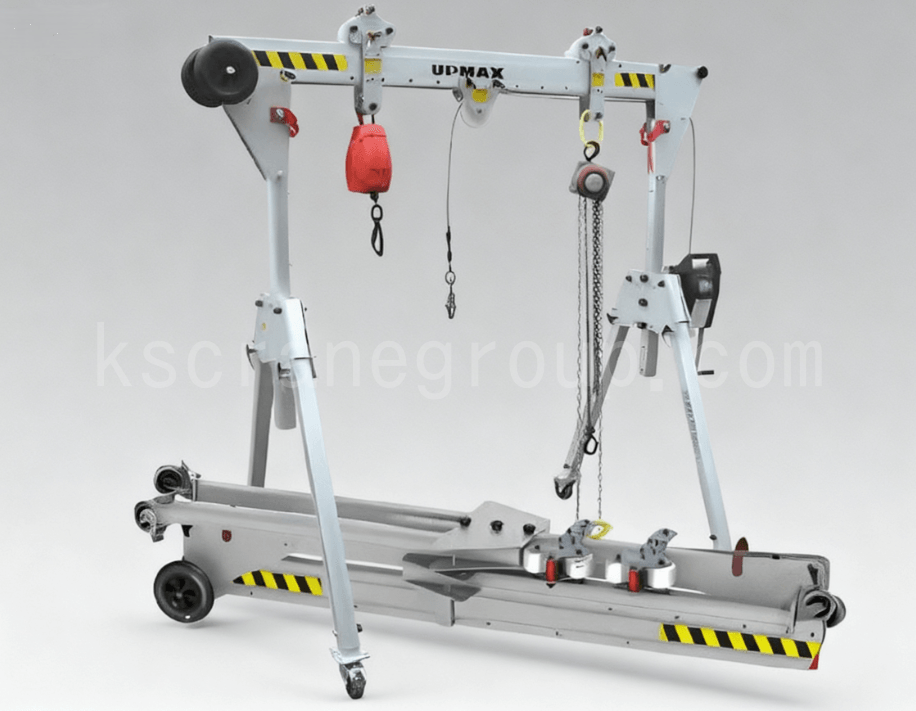

Portable Foldable Gantry Cranes

The small portable foldable gantry crane is usually made of aluminum alloy. It features easy assembly and disassembly, flexible use, and light weight. When folded, its volume can be reduced by more than 50%, making it convenient for transportation and carrying. As a practical mobile gantry, it is suitable for temporary outdoor scenarios, or places with low usage frequency and insufficient storage space.

特点：

• Space-Saving Foldable Design: The small portable foldable gantry crane has a compact foldable structure, which saves space and reduces storage and transportation costs.
• Flexible On-Site Deployment: It can be carried with the vehicle, facilitating outdoor or temporary use.
• Quick Installation: It is easy to install, and can be completed by 1-2 people.
• Flexible Operation: It can pass through narrow spaces smoothly during operation.
• High Safety Performance: The folding joints adopt high-strength alloy hinges and locking mechanisms, ensuring high safety.

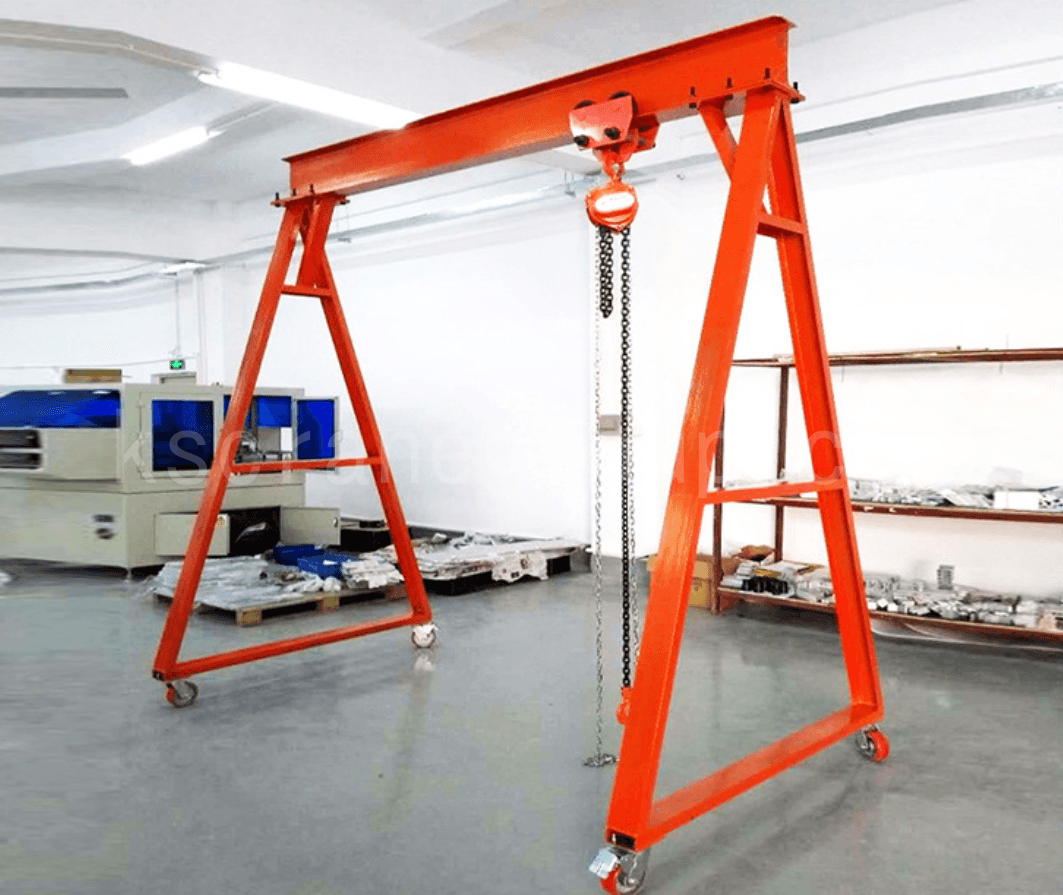

Portable Manual Gantry Cranes

The hand-pushed mobile gantry is made of high-strength steel, ensuring stability and load-bearing capacity. The beam connects two columns to form a stable A-type leg structure. Travel wheels provide it with mobility, allowing free movement within the work area.

As a typical portable overhead crane variant, the small portable manual gantry crane is especially suitable for lifting and hoisting heavy objects in places without stable power supply. It features simple operation and low maintenance costs, serving as a cost-effective alternative to a dedicated mobile gantry hoist in scenarios with basic lifting needs.

特点：

• Power-Free & Strong Adaptability: The small portable manual gantry crane operates without relying on electricity, depending on manual force, which gives it strong environmental adaptability.
• Low Operation Threshold: It has a low operation barrier and requires no professional skills.
• Low Failure Rate: With no electrical components and an extremely simple structure, it features a low failure rate.
• Suitable for Temporary Use: It is ideal for scenarios that require temporary use and have low frequency of use.

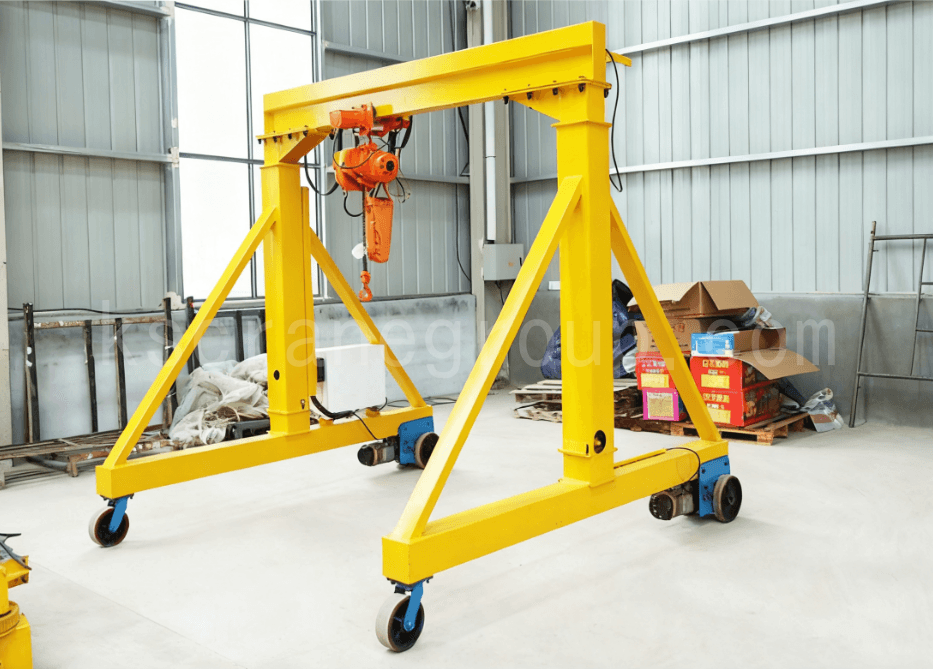

Portable Motorized Gantry Cranes

The small portable electric gantry crane is an electrically driven lifting device. It can be divided into electric lifting and electric traveling types. Among portable gantry cranes, it is suitable for medium-frequency and medium-load lifting operations. Featuring flexible and convenient operation, it can greatly improve work efficiency and easily achieve precise lifting, lowering, and movement.

特点：

• Efficient Electric Drive: The small portable electric gantry crane is powered by electricity, enabling more efficient operation.
• Labor & Cost Saving: It can reduce manual labor and lower operational costs.
• Adjustable Speed: Both the lifting speed and traveling speed are adjustable.

Application Industries of Portable Gantry Cranes

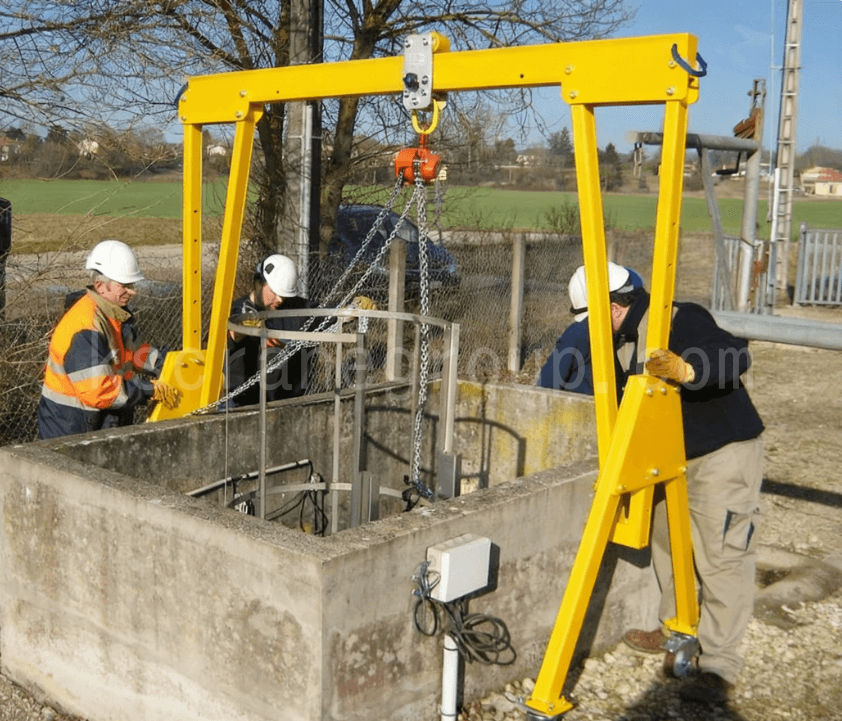

Underground Shaft Equipment Installation and Maintenance

In the installation and maintenance of equipment in small underground structures such as underground cable shafts and inspection shafts in municipal engineering, electric power, or communication industries, the small portable gantry cranes mainly serves maintenance operations in confined spaces. It can assist workers in safely entering and exiting maintenance shafts, and at the same time hoist maintenance tools, equipment, or components to be maintained, solving the problems of narrow underground space and inconvenient manual handling.

As a lightweight lifting device, this portable gantry cranes provides vertical lifting support in temporary outdoor maintenance scenarios, ensuring accurate and safe hoisting and positioning of underground equipment components. Additionally, its stable hoisting function reduces the physical exertion of manual handling, and its structural stability avoids potential safety hazards caused by improper material handling, thereby improving the convenience and safety of maintenance in confined spaces.

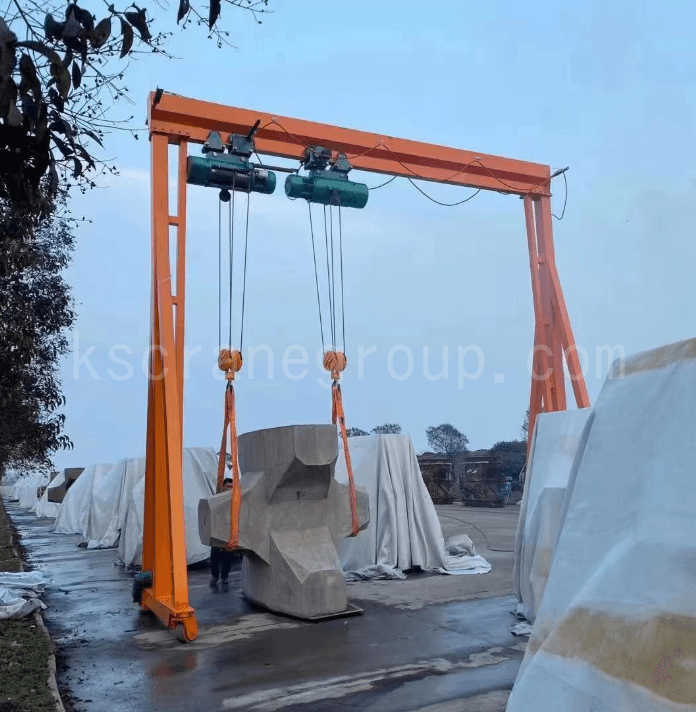

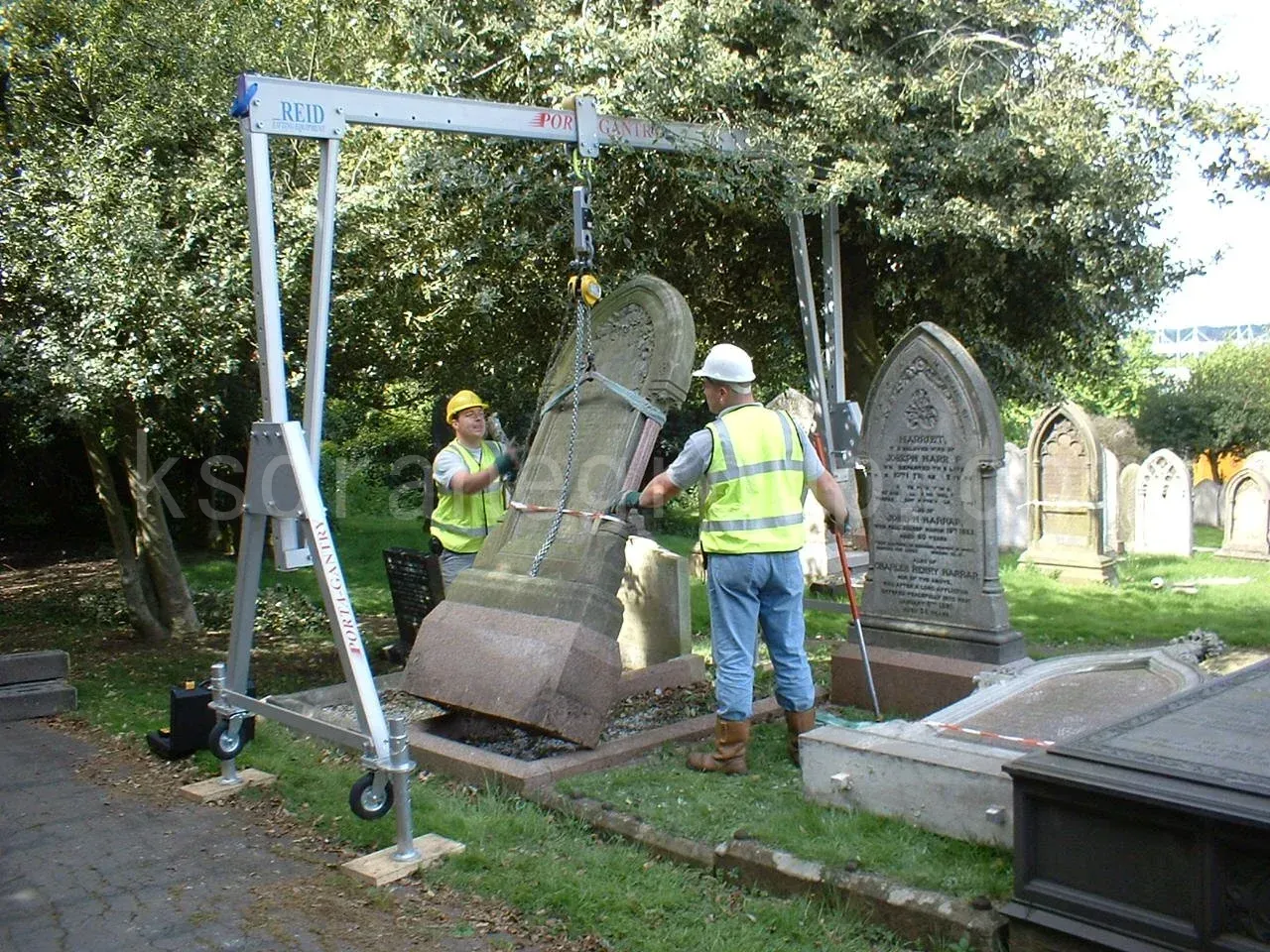

Stone Processing and Installation Industry

In the stone processing and installation industry, such as the installation of tombstones and the positioning of sculptures in public areas, construction workers operate small portable gantry cranes to hoist large ancient tombstones with carvings. Workers use the hoisting equipment on the crane to firmly hook onto the pre-embedded points of the tombstone. Then, under the command of a dedicated person, they operate collaboratively to lift the heavy stone tablet stably and vertically off the ground, and accurately move it above the predetermined concrete base for fine-tuning alignment and installation.

Due to the complex environment of cemeteries, limited space, and possibly soft and uneven ground, traditional large-scale machinery is difficult to enter. The mobile portable gantry cranes, with its lightweight structure, can be manually transported to the work site. It solves the problem of installing large stone materials in built cemeteries and enables the installation of heavy and fragile stone products.

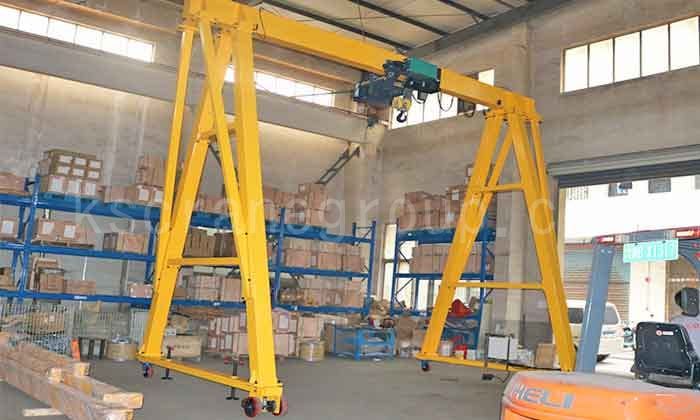

Warehouse Goods Storage, Retrieval and In-warehouse Transfer

In warehouse internal management, operators use small portable gantry cranes to store, retrieve, or transfer goods on shelves. When goods need to be transported, the crane is pushed to the front of the target shelf. Operators use an electric hoist to lift the goods vertically, then manually push the crane or fine-tune the goods position to accurately deliver them to the designated shelf compartment or move them to another temporary storage area in the warehouse.Thanks to the characteristics of light weight, flexible mobility, and compact structure of the portable gantry cranes, it can easily enter narrow shelf aisles where traditional forklifts are difficult to operate. It effectively solves the hoisting problem of heavy equipment being inconvenient to move in dense storage environments, realizing safe and accurate fixed-point storage, retrieval, and transfer of goods in the warehouse.

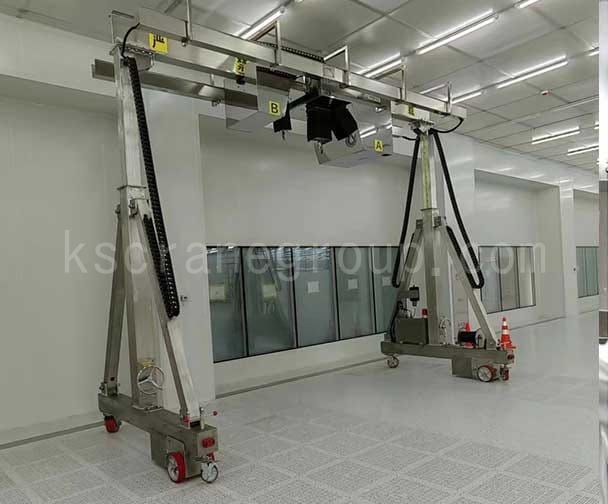

Pharmaceutical Factories and Clean Rooms

In the high-standard production environment of pharmaceutical factories and clean rooms, operators flexibly move the small portable gantry cranes to key workstations inside the clean room. Operators control the spreader to lift important loads stably and vertically, and finally install the equipment or materials safely and accurately at the designated position on the production line.
Due to the cleanliness requirements of pharmaceutical factories, the selected portable gantry cranes not only eliminates pollution risks but also has a simple structure that greatly reduces dust dead corners. It effectively solves the problems of precise equipment positioning and cleanliness requirements in strictly controlled environments, realizing the safe, efficient, and compliant circulation of key materials and equipment

Export Cases and Product Prices of Small Portable Gantry Cranes

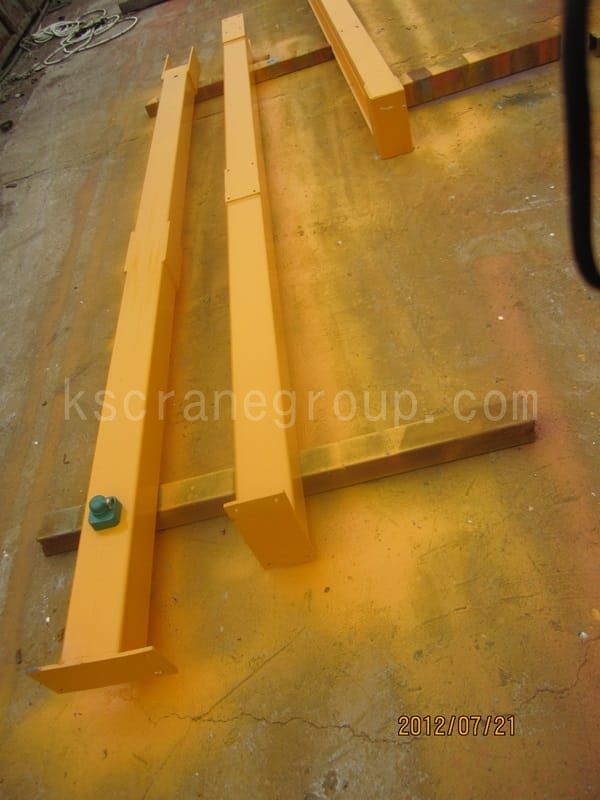

Delivery of 1 Unit 3t Small Portable Gantry Crane to South Africa

Project Background: A South African customer, a manufacturing factory, wanted to improve the efficiency of warehouse inbound and outbound operations. They consulted us about purchasing a small portable gantry crane for use in a small warehouse. After selection, they finally chose KUANGSHANCRANE. The project parameters are as follows:

• Lifting Height: 3m
• 跨度：5米
• Lifting Capacity: 3t
• Exquisite Craftsmanship: Adopting excellent painting technology, with welding and polishing processes to achieve one-piece forming, which is not easy to rust.
• Transaction Price: 3100 USD

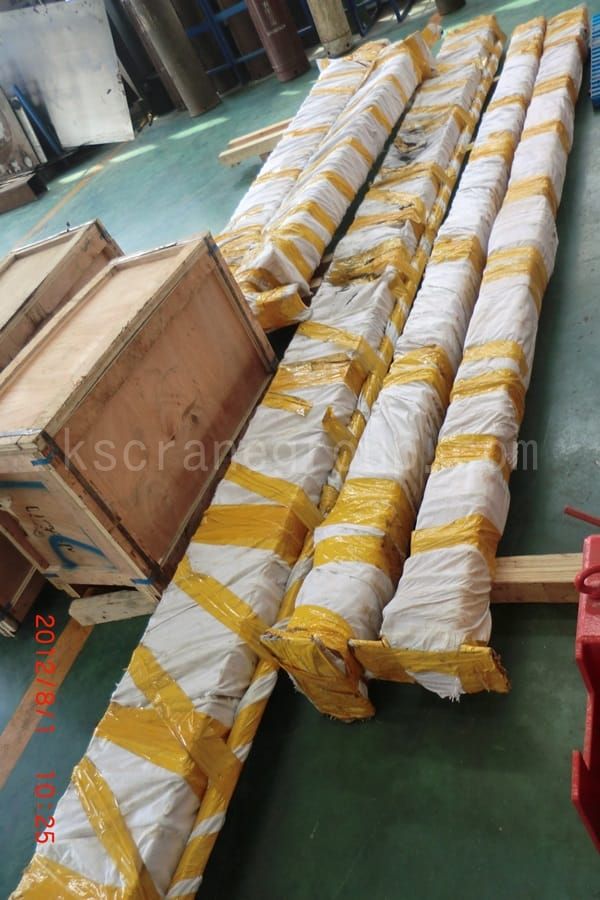

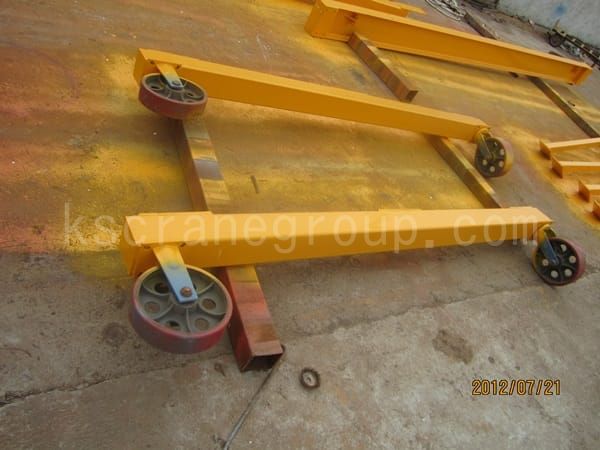

Production and Shipping Process:

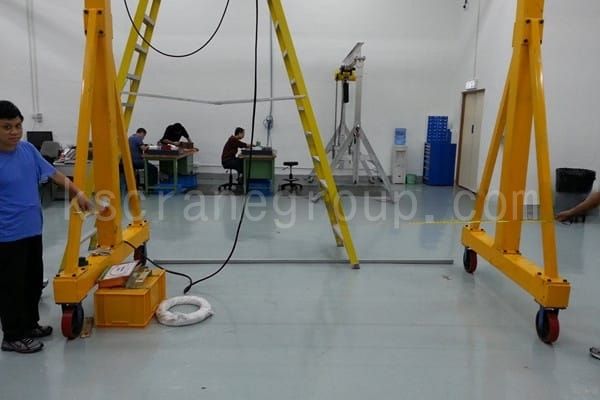

Delivery of 2 Units Portable Gantry Cranes to Hong Kong Customer

Project Background: A Hong Kong customer consulted us about lightweight and movable gantry cranes. After understanding their demand for indoor use and frequent movement, we recommended portable gantry cranes to them. The product parameters are as follows

• Lifting Height: 3.5m
• Span: 4m
• Lifting Capacity: 3t
• Transaction Price: 2900 USD/set

Product Delivery and Commissioning:

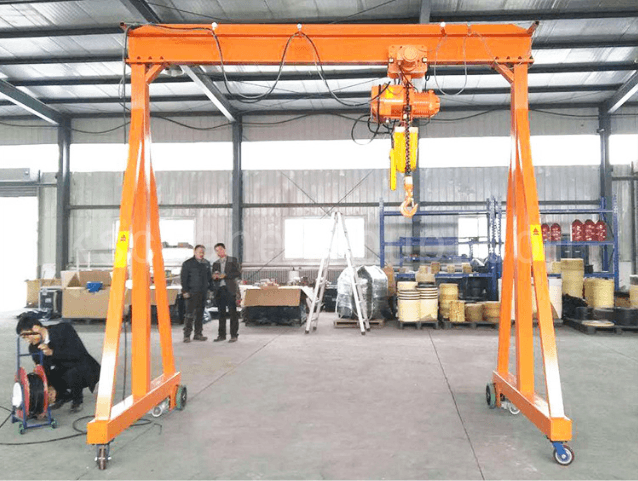

Delivery of 1 Unit Portable Crane to a Manufacturing Factory

Project Background: A manufacturing factory consulted us about a lightweight and movable product for material transfer in the workshop. After gaining an in-depth understanding of the customer’s needs, the customer customized an electric portable gantry cranes from us. The specific parameters are as follows:

• 举升高度：9m
• Span: 2.5m
• Lifting Capacity: 1t
• 工人阶级：A3
• Lifting Mechanism: Electric Chain Hoist
• Transaction Price: 4300 USD (including installation and commissioning costs)

Product Display:

Note: Due to fluctuations in the raw material market and differences in customized products, the prices in historical cases are for reference only. If you want to know the latest quotation, please consult our professional team.

How to Choose a Portable Gantry Crane?

Clarify Operation Requirements
If the load is heavy and the operation is frequent, it is recommended to prioritize the electric portable gantry cranes. It features high efficiency, which is more suitable for such working conditions.

Evaluate On-Site Conditions
If the environment contains corrosive substances or has cleanliness requirements, the portable aluminum gantry crane is a better choice. It has excellent corrosion resistance and is easy to clean, meeting the special needs of the site.

Focus on Safety & Cost
Equip the crane with an overload limiter and a lifting limit device. These devices will issue alerts when the load or lifting height is close to the rated value, avoiding accident risks caused by overloading or over-hoisting.

Consider Long-Term Costs
Comprehensively take into account multiple cost factors, including purchase cost, energy consumption cost, maintenance cost, service life, and space cost, to make a cost-effective decision.
We have provided a selection table for your reference. If you cannot make a choice due to complex working conditions, please contact our team, and we will provide you with professional consulting services.

To sum up, for high-frequency and heavy-load operations, choose the electric small portable gantry cranes; for clean environments, select the portable aluminum gantry crane; for multi-scenario height changes, opt for the adjustable portable gantry cranes; for temporary and low-frequency use, pick the foldable small portable gantry cranes; and for light-load and ultra-simple needs, go for the manual small portable gantry cranes. Adding safety equipment as required can achieve optimal long-term costs.

Customize Your Portable Gantry Cranes

Targeting your specific operating environment and lifting needs, KUANGSHAN CRANE has rich experience in tailoring lifting solutions for you. If you need free design or product quotation, please provide the following parameters, and our engineering and technical team will offer you professional services:

• 起重能力（吨）
• 举升高度（米）
• Power Supply Condition (with or without stable power supply; manual drive is optional for no-power scenarios)
• Application Scope: Whether there are special requirements such as explosion-proof, cleanliness, etc.
• Special Configurations: Such as limit protection, acousto-optic alarm, windproof device, etc.

With over 20 years of development, KUANGSHAN CRANE has provided cost-effective products and services to tens of thousands of customers in 122 countries worldwide. Currently, the company has achieved remarkable results in more than 50 professional fields, including aerospace, automotive and shipbuilding, petrochemicals, railway and port, iron and steel smelting, machinery manufacturing, and waste incineration treatment.

Owning its own manufacturing factory equipped with various manufacturing and testing equipment, KUANGSHAN CRANE integrates R&D, design, manufacturing, sales, and service. This ensures that you receive high-quality products that meet international standards. Choose KUANGSHAN CRANE to help you achieve efficient material handling.
