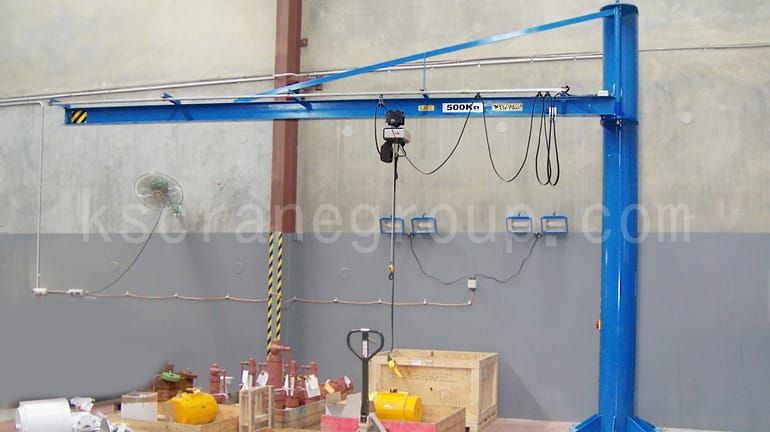

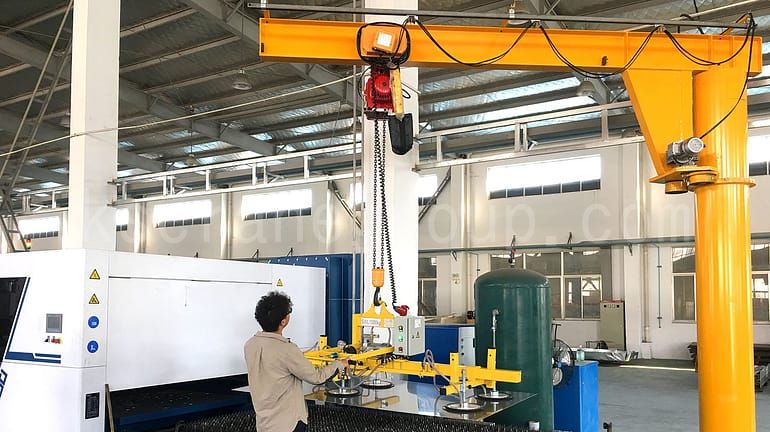

Free Standing Jib Crane

Products Description

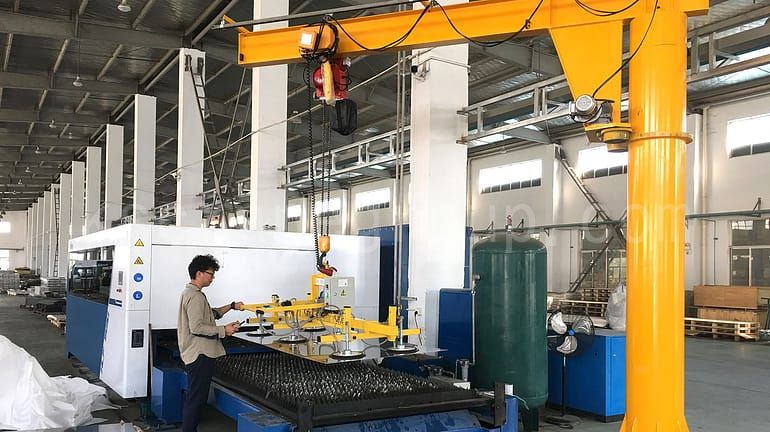

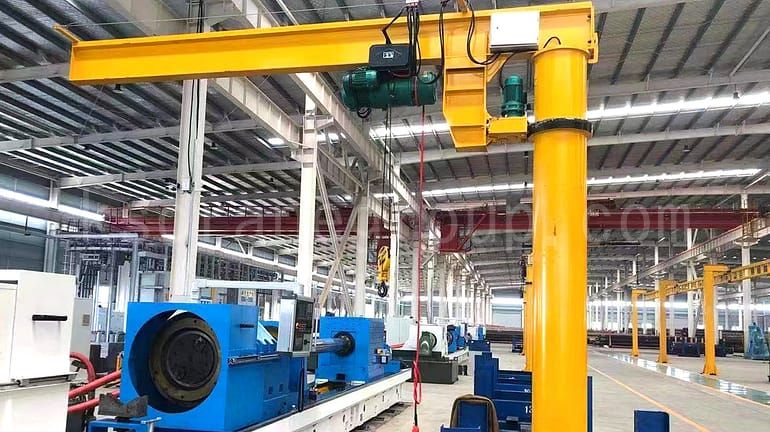

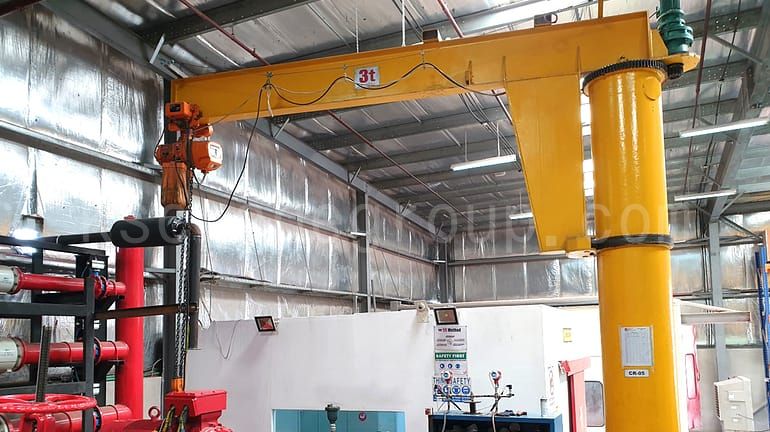

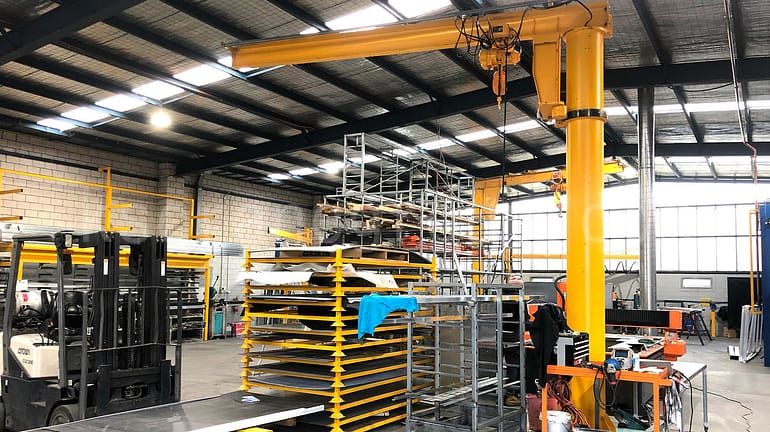

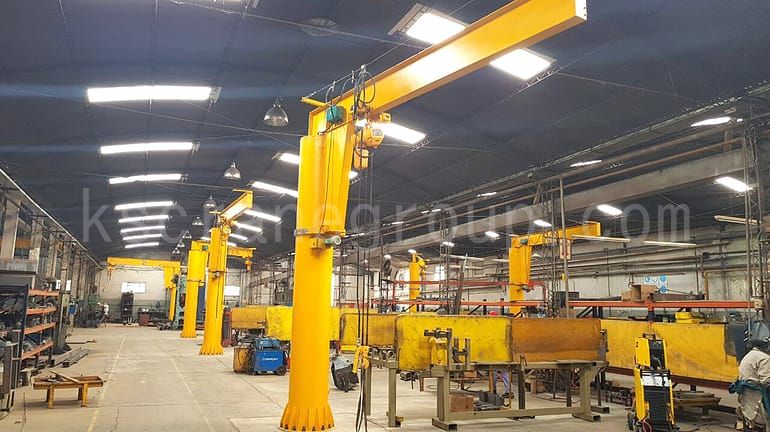

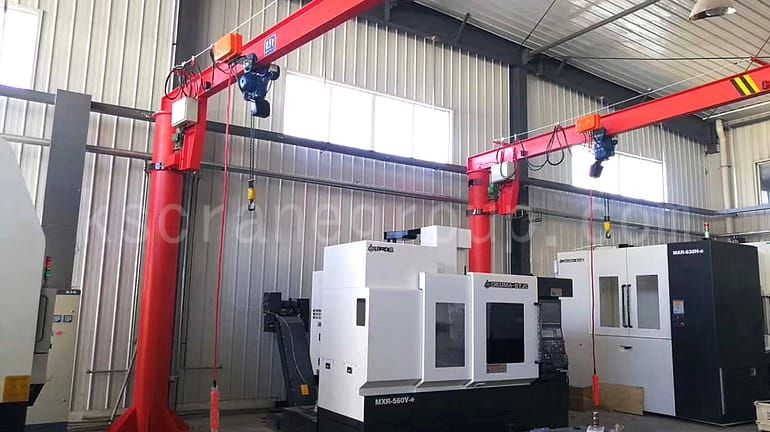

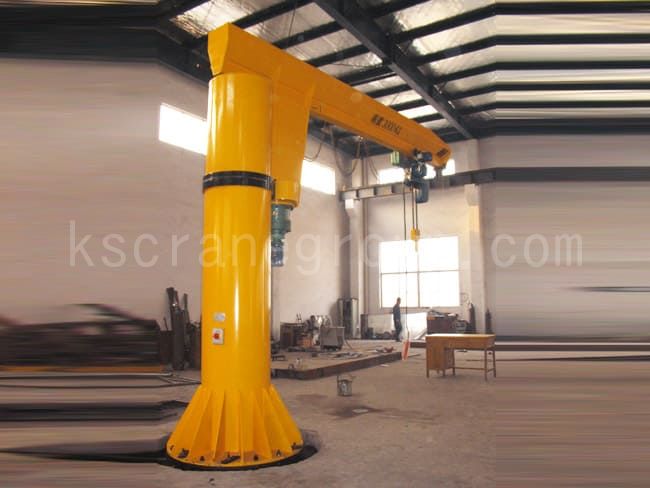

Free standing jib crane,also called pillar jib crane, are extremely versatile units which can easily be adapted to the customers specific requirements. For example, pillar jib crane can be mounted in any position. Electric wire rope or chain hoists are available as options, as are electric hoist travel and electric slewing gear.

Features and Specifications

  • Construction and Design : According to I.S.807 and I.S. 3177
  • Column: We apply pipes or rolled steel sectionsin construction
  • Jib Arm : To reduce deflection,construction should be done in the reasonable manner
  • Swivel: There are two ways to realizeswivel, namely by chain or by cranking with hands, and the chain usually locateat the end of jib arm. As for pillar jib crane, swiveling can be driven byelectrical mechanism.
  • Plates : To reinforce column's rigidity, thebase plates and mild steel gusset plate are used, and the thick base plates need7-8 holding down bolts during the drilling.
  • Bearings : For vertical, horizontal andradial loadings, the self-aligned bearings are used, which include types forthrust and double roller types.
  • Mast : Pipe or Rolled Steel Sections are used in construction

Advantages and characteristics

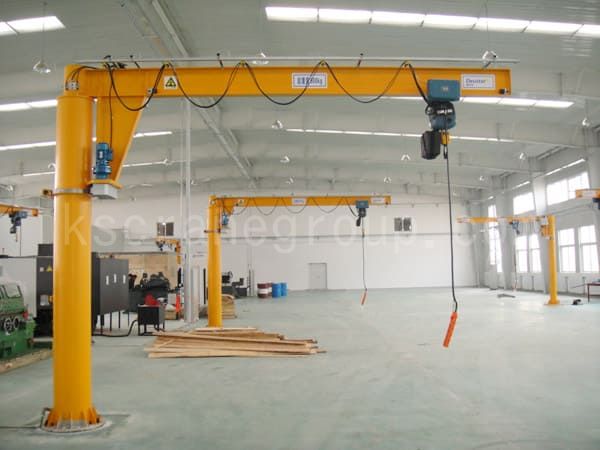

  • It has two types Jib crane: BZ model (light medium) and BZD model (heavy duty medium)
  • It can be used to match with single or double speed electric hoist and chain hoist.

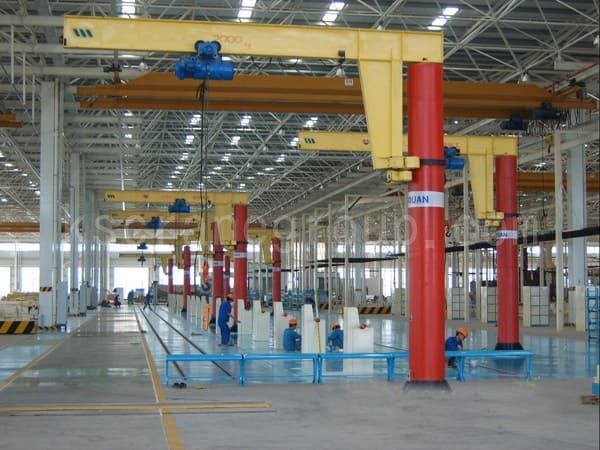

  • Pillar jib crane suitable to work in the dock, warehouse, workshop etc.
  • Fixed working conditions.Free standingjib crane increase in autonomy and effectiveness of each work station.
  • It is superior in the cases of short distance concentrated lifting.
  • It has characteristics of unique structure, safe and reliable operation, high efficiency, energy-saving ,doesn't take up much space but allow transporting goods on a three-dimensional plane.

Technical Specification
Model BZD0.25 BZD0.5 BZD1 BZD2 BZD3 BZD5
Capacity Ton 0.25 0.5 1 2 3 5
Lift height m According to your demand
Max. radius of gyration m According to your demand
Turning angle degree 360
Lifting speed Normal m/min 4;10;8 5;10;8 5;8 4;8 8 8
Slow m/min 1;2.5;0.8 1.25;2.5 1.25;2;0.8 1;0.8 0.8 0.8
Travel speed m/min 14;20 14;20 14;20 14;20 20 20
Angle of revolution speed m/min 1.0 0.8 0.7 0.7 0.9 0.6

  • Configurations

  • capacity: 0.5t-15t

    Arm length: 2m-12m

    Lifting height: 0.5m-10m

    Rotation: 180, 270, 360 degree

  • Fully customized solutionsare available ahead standard configurations.
