Foundry Overhead Crane

Products Description

Foundry overhead crane have two shapes. They are light foundry bridge crane and heavy duty foundry crane.

light foundry bridge crane

Bridge foundry crane with hook is mainly used at the place where the molten metal is lifted. The working class of the complete machine is A 7, and thermal-protective coating is added at the bottom of the main girder. The assembling and test of the crane conform to the document No.ZJBT [2007]375 which was issued by General Administration of Quality Supervision, Inspection and quarantine of the People's Republic of China.

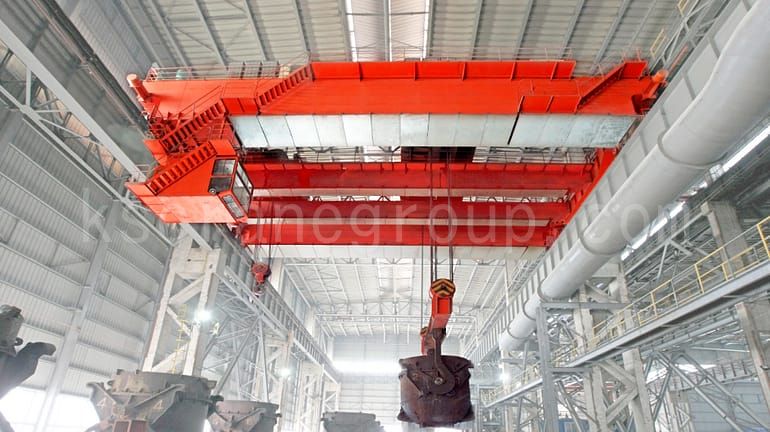

heavy duty foundry crane

It is mainly used for pouring melted iron from additive bay to converter, lifting molten steel from refining bay to refining furnace or to the ladle turret of casting machine. The overall structure of foundry cranes has the following forms:two-girder and two-rail, four girder and four-rail, and four -girder and six-rail, etc.The top two forms are mainly used for middle and large-ton foundry crane. The crane of the last form is mainly used for extra large-ton foundry crane.

Environmental conditions

  • The power of crane is three-phase AC; rated frequency is 50HZ; rated voltage is 380V.
  • The temperature of working environment is -10℃-+60℃;.
  • The relative humidity is no more than 50% when the temperature is +40℃.
  • If the requirements are more than above-mentioned, it shall carry out the requirements in the purchase contract.

Conventional scheme

  • Using the closed cab
  • Each organ is H class
  • The insulating YZR type motor
  • Working in the highest ambient temperature is 60℃
  • Collocate with the advanced electric and the winch is make with the welding's steel board
  • The gear box with the detent and the ratchet wheel

For other scheme user can choose

  • Fixing with wireless remote control to realize the long distance control.
  • The control type can dispart.
  • Can fixing with air conditioner、cold air blower、interphone and the electronic balance.
  • The bridge crane's hook size can accord with the client special to design.
  • Configurations

  • Capacity: 2-250 tons

    Span: ≥10m

    Lifting height: ≥5m

    Work duty: ≥FEM 2M

    Protection grade: IP54-IP65

    Inverter: Schneider, Yaskawa

    Motor: China famous brand or European brand

  • Fully customized solutionsare available ahead standard configurations.
